Angel Wing Designs E2K JPS3 Mini 700mm [kit-to-build] AWD03
£49.99

Shipping from:
£3.99

Brand:  Angelwing Designs
Part No: AWD03
Barcode: A-AWD03
Availability : 3 in stock

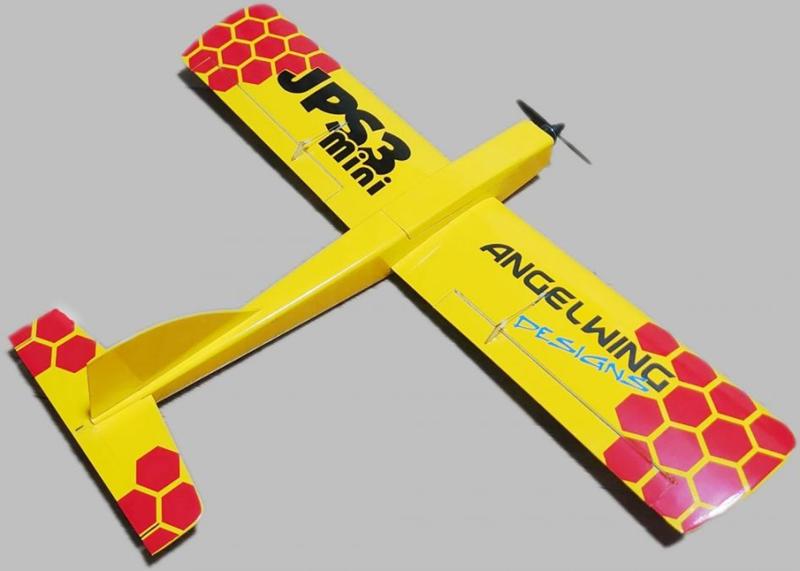

Approved by PB models we are proud to bring you the JPS3-Mini.
The original JPS3 is a E2K Compliant pylon racer, our mini version is just 700mm
span with speed to match or rival its full sized counterpart. Designed as a compact one piece model that is ready to go at a moments notice.

4s Full on "Mind Bender mode"

• 700mm Span, 126mm Chord
• Approx 0.95sqft Wing area
• Typical flying weight 270g (4s 650mah)
  can be built to 250g for spirited sport flying with 3s batteries
• Approx 10oz sqft wing loading
• Length including motor approx 520mm


• Veneered foam wings
• Triangular balsa wing tips and for easy shaping
• 1.5mm Birch plywood dihedral brace
• Laser cut 2.5mm balsa fuselage with Naca style cooling vents
• 0.4mm "laserboard" fuselage doublers
• Laser Cut 3mm Balsa Tail surfaces
• Poplar plywood fuselage formers
• Birch plywood removable motor mount
• Self tapping screws for motor mount
• m3x5mm bolts for 22XX series motors
• Magnetic fuselage hatch
• 0.8mm Piano wire Aileron Pushrods
• 2mm Tube carbon fiber elevator pushrod
• Poplar ply servo cut for Kingmax KM04 5.7g metal geared servos or similar
• Vibrant and bold vinyl decal

  Suggested set up


• Suitable for 3s 650 or 850mah Lipo or 4s 650 Lipo
• 3 x 5g Metal geared servos
• 4 Channel Micro RX


• 2203.5 1500kv - 4s Lipo -  5x5 (2blade) 18 amp esc
• 2203.5 2850kv - 3s Lipo -  5x5 (2blade) 18 amp esc
• 2203.5 2850kv - 4s Lipo -  5x5 (2blade0 40amp esc


• Also suitable for 2205 - 2207 motors 1500 - 2850kv. These are potentially very high power setups and you should research the motor choice and pick carefully.
