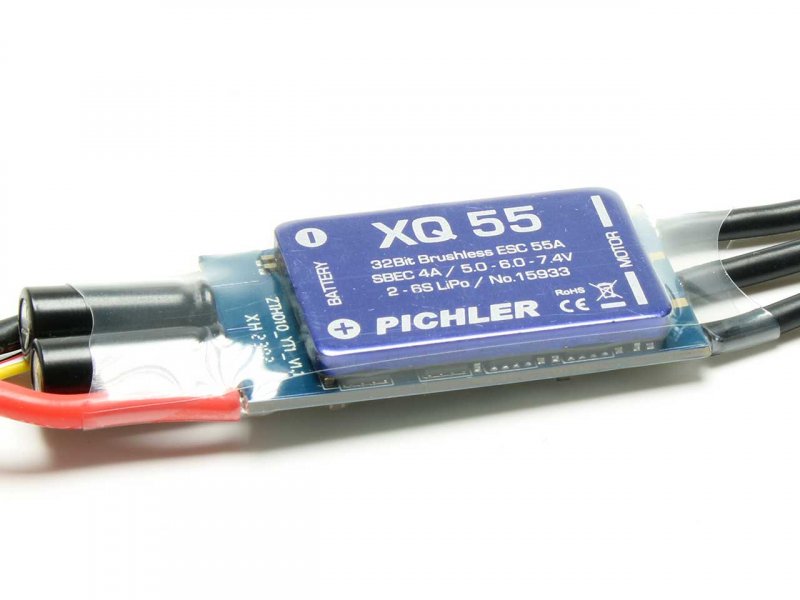

Pichler Brushless Speed Controller ESC XQ+ 55 15933
£57.90

Brand:  Pichler
Part No: 15933
Barcode: 4056534062669
Availability : 1 in stock

PICHLER XQ brushless ESCs have been further developed and impress with a range of new features:

- Forward/reverse rotation switchable via your radio transmitter
- Adjustable BEC voltage
- Convenient programming via a new programming box or Bluetooth/mobile app

PICHLER XQ ESCs stand out due to their exceptional quality; only the best components are used.

They deliver excellent performance with all common outrunner and inrunner motors, ensuring trouble-free operation even at partial throttle. All settings—such as rotation direction, battery type, start-up and cut-off voltage, timing, brake, heli mode (governor mode), etc.—can be easily configured.

Adjustable settings
- Brake
- Timing
- Rotation direction
- Forward/reverse rotation (SMR)
- Active freewheeling (SR)
- Battery type
- Low-voltage cut-off
- Start-up behavior
- Cut-off behavior

Product features
* Ideal for model aircraft
* 32-bit microprocessor
* Extremely precise control response
* Selected, high-quality MOSFET transistors
* Powerful, integrated BEC receiver power supply
* Suitable for all common brushless motors (outrunner or inrunner)
* Active freewheeling / rectifier for ducted fan (EDF) drives
* Proven top-tier quality

Technical data
LiPo / NiXX cells = 2–6 / 5–18
Continuous current = 55A
Peak current (short-term) = 65A
BEC = 4A (5V - 6V - 7.4V)
Weight = 55g (incl. cables and connectors)
Dimensions = 68 x 25 x 10mm

Optional accessories (recommended)
Programming box, # 15966
Bluetooth module for ESC, # 15932
