JP Hobby 1 to 3 Landing Lights set + controller (diam. 13mm) JPH-Landing Lights-SET-13
£29.99

Brand:  JP Hobby
Part No: JPH-LANDING LIGHTS-SET-13
Barcode: 99000026510
Availability : 1 in stock

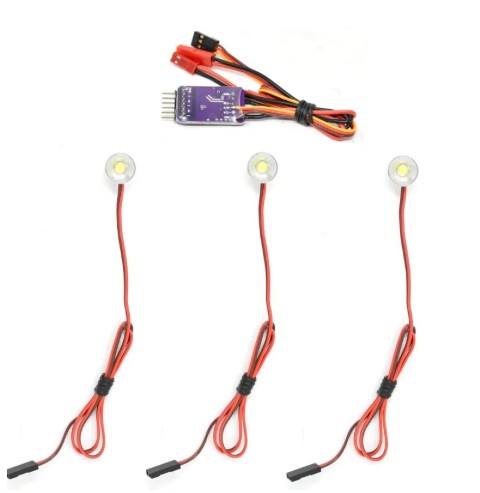

JP Hobby 3 Landing Lights set + controller
Set of 3 Landing Linghts to be installed on a tricycle landing gear. Can work with 1, 2 or 3 lights.

Nota: Connecting the 3x headlight sockets to the input pins of the controller (if no ignition, reverse the polarity of the sockets), and the red socket of the controller to a 2S battery and black socket (JR/ Futaba type) on receiver track of the retracting gear with a Y cord (gear extended - headlights on / gear retracted - headlights off)

Specifications
White LED Lights
Support diameter: 13mm
Support depth: 11mm
Lights diameter: 10mm
Wire: 300mm
Module power supply: 5v to 7.4V (2s)
Out Put Voltage : 2.7V-3.0V
Light Lamp: 6000 - 6500 lamp
Watt : 1W Max Current: 350mAH
M3 screw hole for mounting at the back of each light (screw not included)
Switching Mode: On/Off

Content
3x LED lights
1x controller
