FrSky ACT MD5312H Mini Servo (30.5kg/0.08s 6V - 8.4V) 03050660

The Act series coreless servos utilize a fully CNC-machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.

The Act series servos are available in a range of models to support different torques and Speeds depending on your needs. These servos are ideally matched to models especially where power, reliability, and precision are required.

High Durability with Metal Gear
All-aluminum CNC-machined Protective Case
8.4V High Voltage Capability, Offering Excellent Torque with Optimal Speed Performance.
Integrated Dual Precision Ball Bearing and Potentiometer

Act Coreless 5300 Series High-Voltage Servos

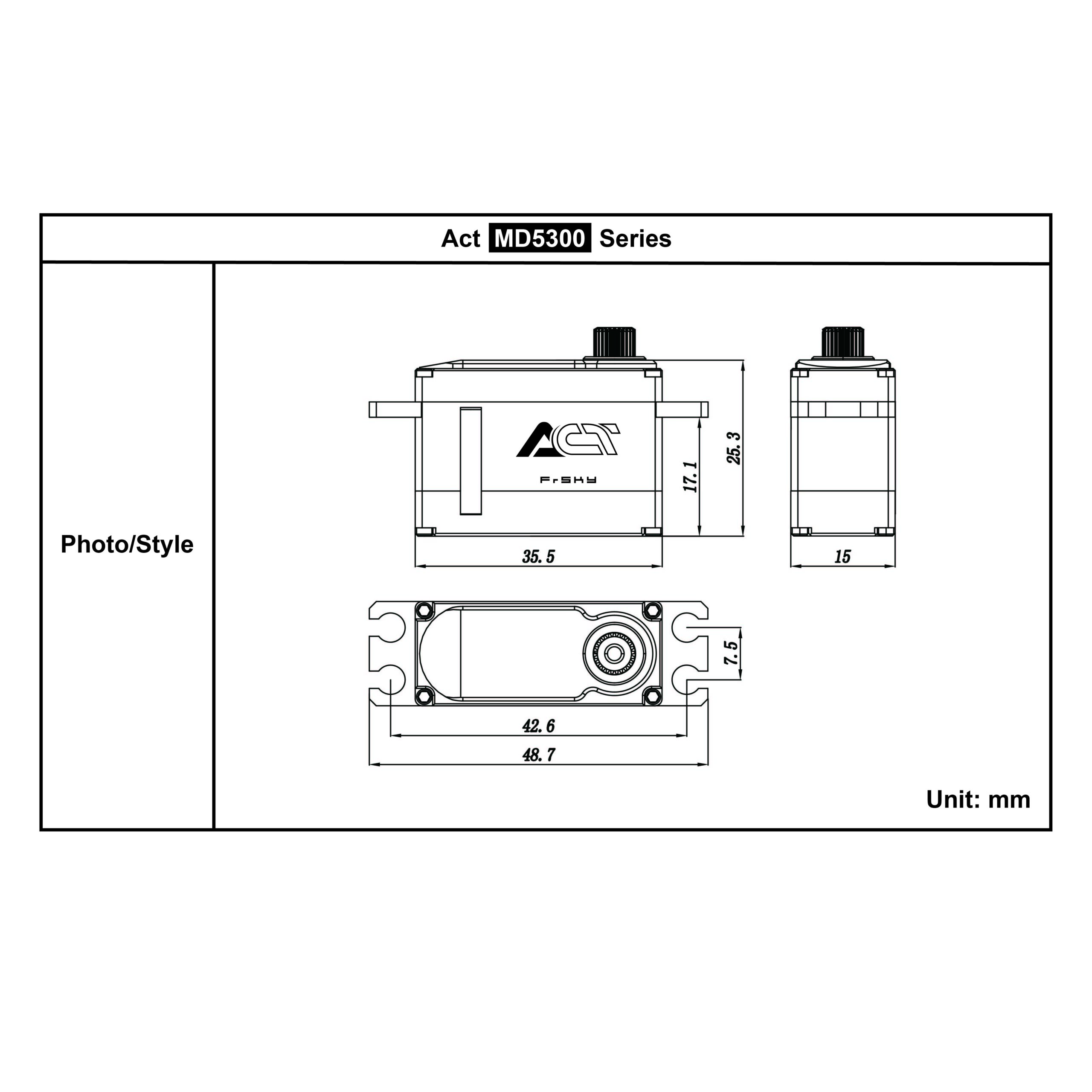

DIMENSION	35.5×15×25.3mm (L×W×H)
WEIGHT	41.15g
HORN SPLINE	Φ6 25T
STALL CURRENT	2.7A@6.0V / 3.5A@7.4V / 3.9A@8.4V
OPERATING VOLTAGE RANGE	4.8~8.4V
REFRESH RATE	1520us/50Hz
PERFORMANCE	TORQUE\|SPEED @6.0V		TORQUE\|SPEED @7.4V		TORQUE\|SPEED @8.4V
ACT MD5312H	24.4 kgf.cm 338.9 Oz-in	0.11 sec/60°	26.2 kgf.cm 363.8 Oz-in	0.09 sec/60°	30.5 kgf.cm 423.6 Oz-in	0.08 sec/60°

Manufacturer Info

FrSky Homepage

Other products

FrSky ACT MD5312H Mini Servo (30.5kg/0.08s 6V - 8.4V) 03050660£43.99Brand: FrSky Part No: 03050660Barcode: 99000026506Availability : Sold Out !

FrSky ACT MD5312H Mini Servo (30.5kg/0.08s 6V - 8.4V) 03050660
£43.99
Brand: FrSky
Part No: 03050660
Barcode: 99000026506
Availability : Sold Out !
