FrSky ACT S5415H Standard Servo (71kg/0.10s 6V - 8.4V) 03050658, Model Shop Leeds

FrSky ACT S5415H Standard Servo (71kg/0.10s 6V - 8.4V) 03050658

The Act series coreless servos utilize a fully CNC-machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.

The Act series servos are available in a range of models to support different torques and Speeds depending on your needs. These servos are ideally matched to models especially where power, reliability, and precision are required.

High Durability with Metal Gear
All-aluminum CNC-machined Protective Case
8.4V High Voltage Capability, Offering Excellent Torque with Optimal Speed Performance.
Integrated Dual Precision Ball Bearing and Potentiometer

Act Coreless 5400 Series High-Voltage Servos

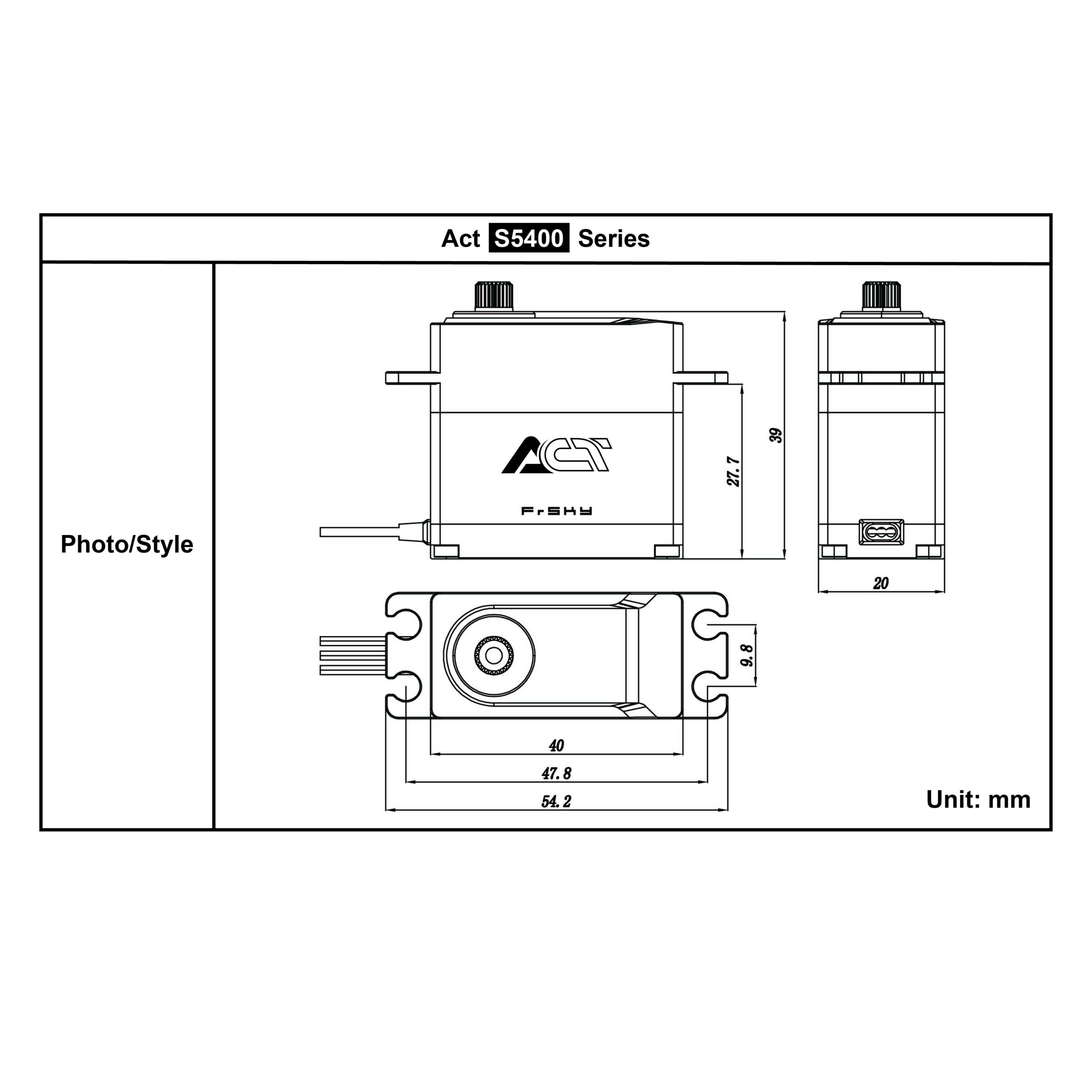

DIMENSION	40×20×39mm (L×W×H)
WEIGHT	80g
HORN SPLINE	Φ6 25T
STALL CURRENT	4.7A@6.0V / 5.8A@7.4V / 6.6A@8.4V
OPERATING VOLTAGE RANGE	4.8~8.4V
REFRESH RATE	1520us/333Hz
PERFORMANCE	TORQUE\|SPEED @6.0V		TORQUE\|SPEED @7.4V		TORQUE\|SPEED @8.4V
S5412H	22 kgf.cm 305.5 Oz-in	0.07 sec/60°	27 kgf.cm 375 Oz-in	0.06 sec/60°	30 kgf.cm 416.6 Oz-in	0.05 sec/60°
S5414H	47 kgf.cm 652.7 Oz-in	0.12 sec/60°	55 kgf.cm 763.8 Oz-in	0.10 sec/60°	63 kgf.cm 874.9 Oz-in	0.08 sec/60°
S5415H	53 kgf.cm 736 Oz-in	0.15 sec/60°	63 kgf.cm 874.9 Oz-in	0.12 sec/60°	71 kgf.cm 986 Oz-in	0.10 sec/60°
