Aeronaut Scope RC 2660mm [kit-to-build] AN1314/00
£181.87

Shipping from:
£8.99

Brand:  Aeronaut
Part No: AN1314/00
Barcode: 4012230095509
Availability : 2 in stock

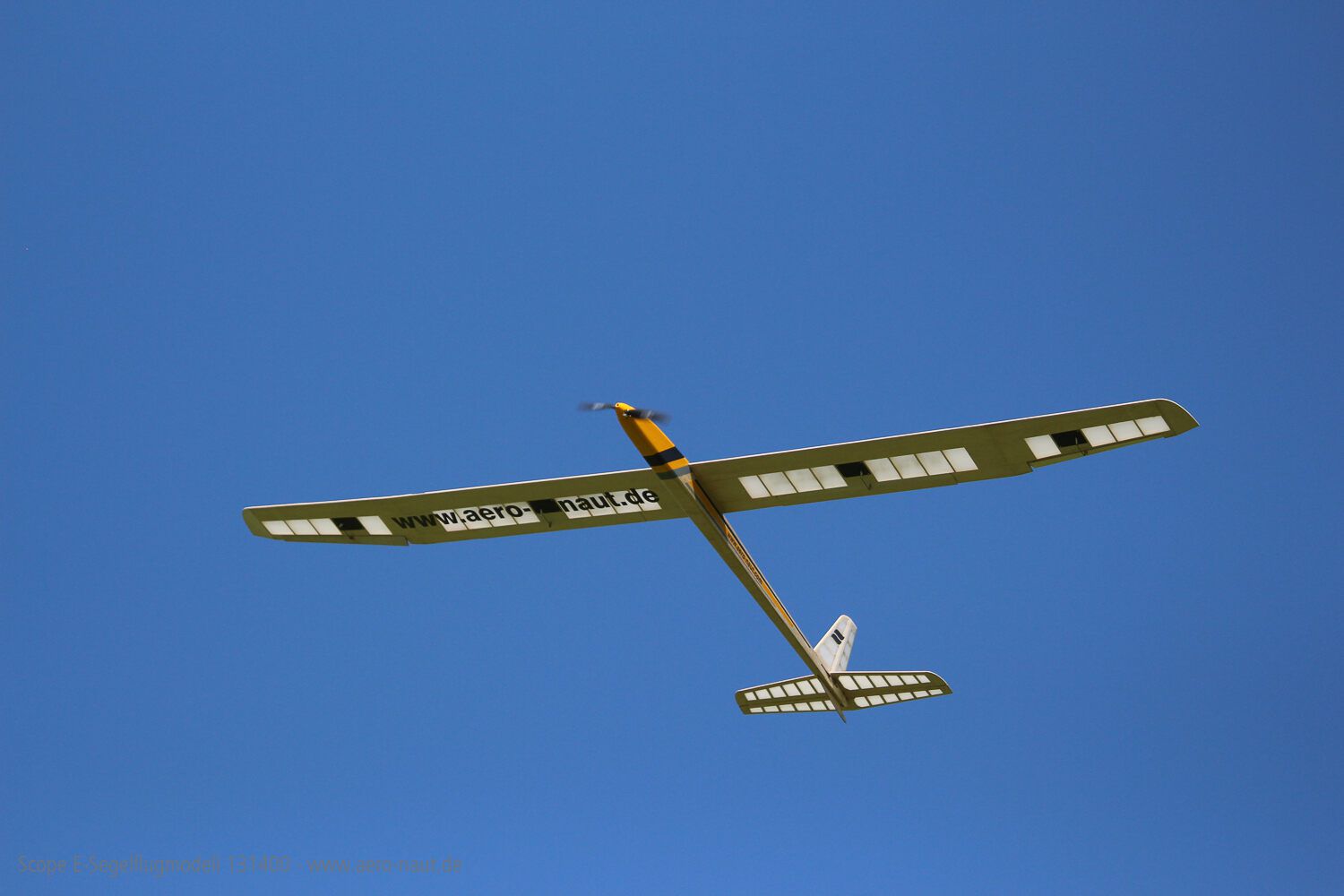

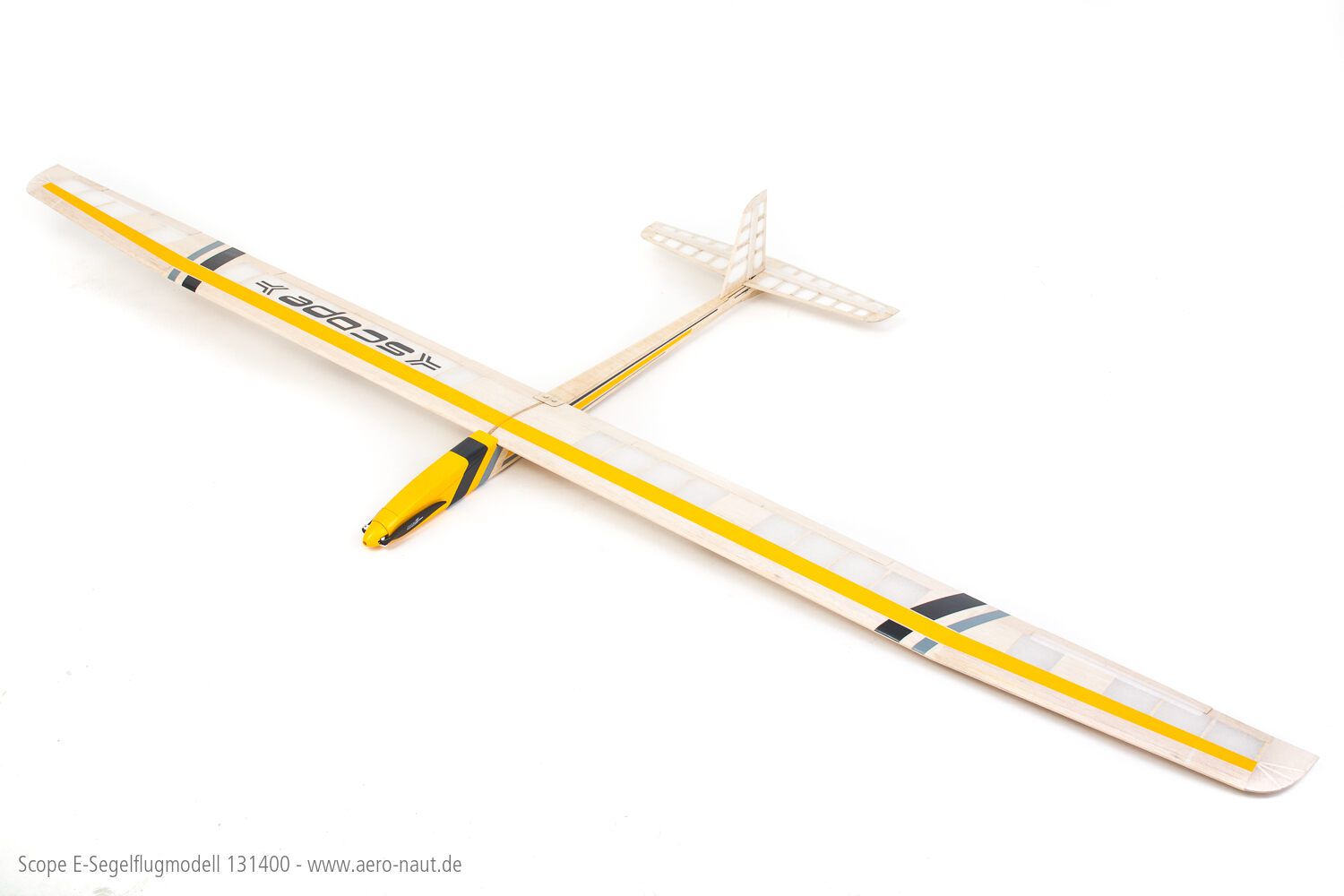

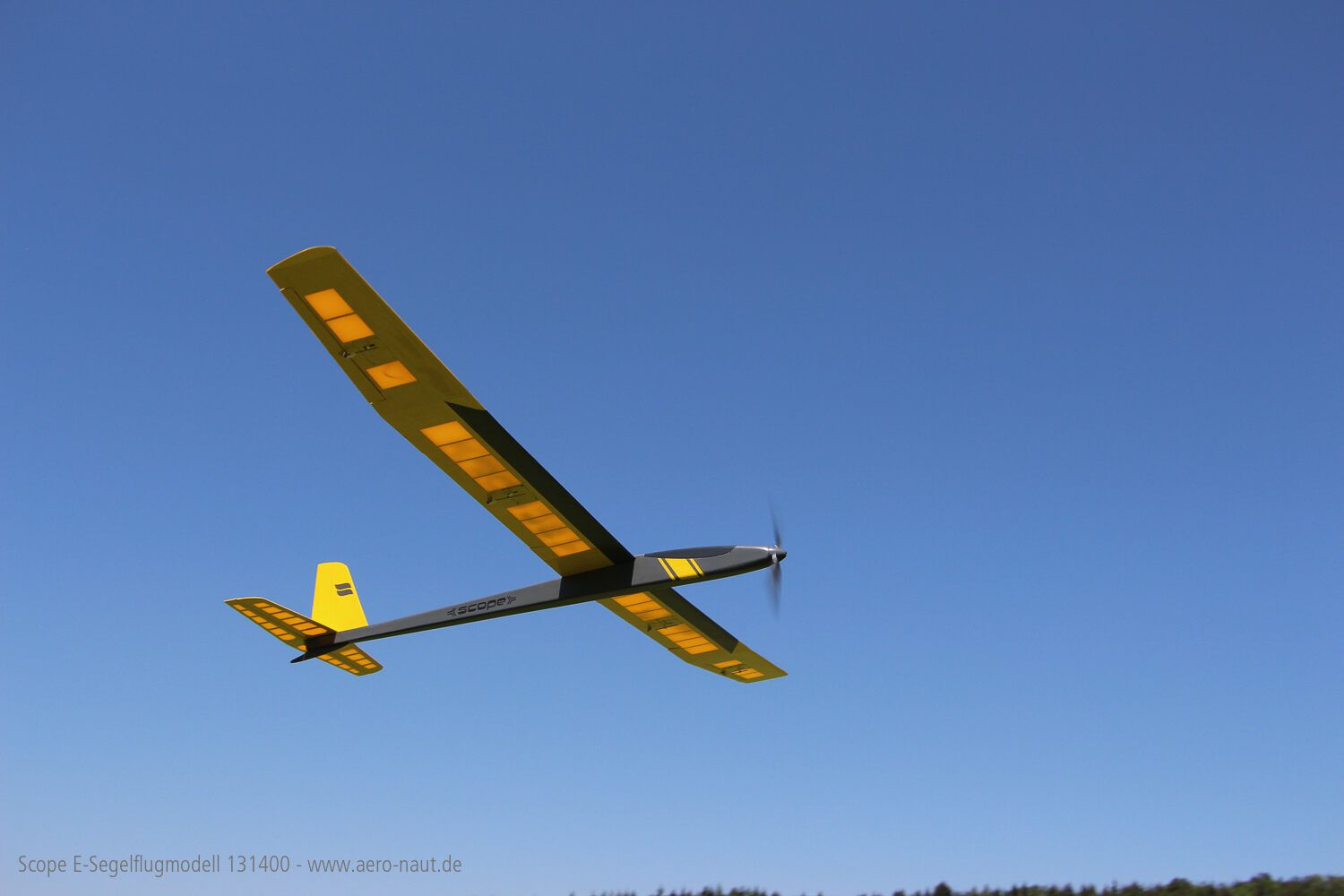

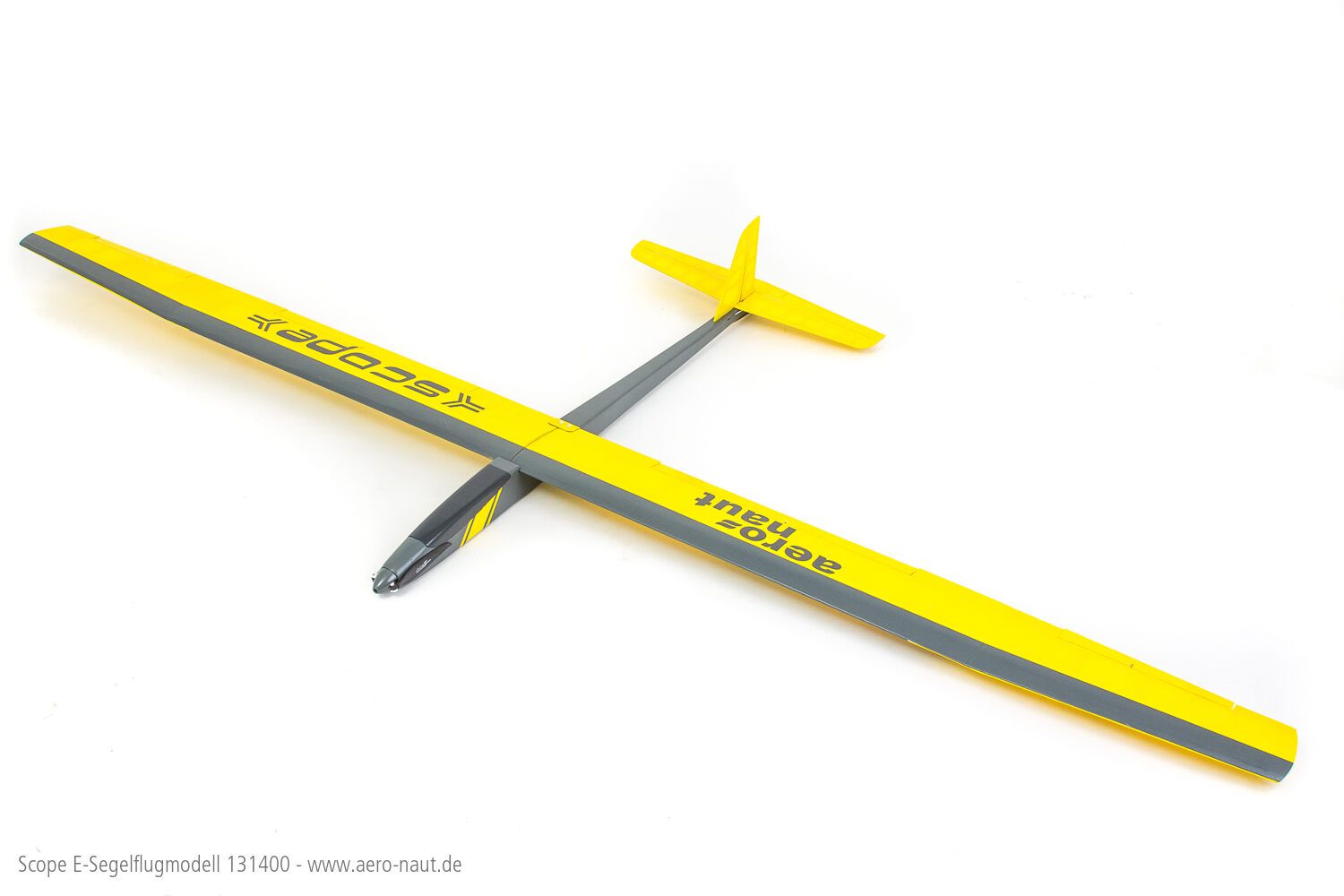

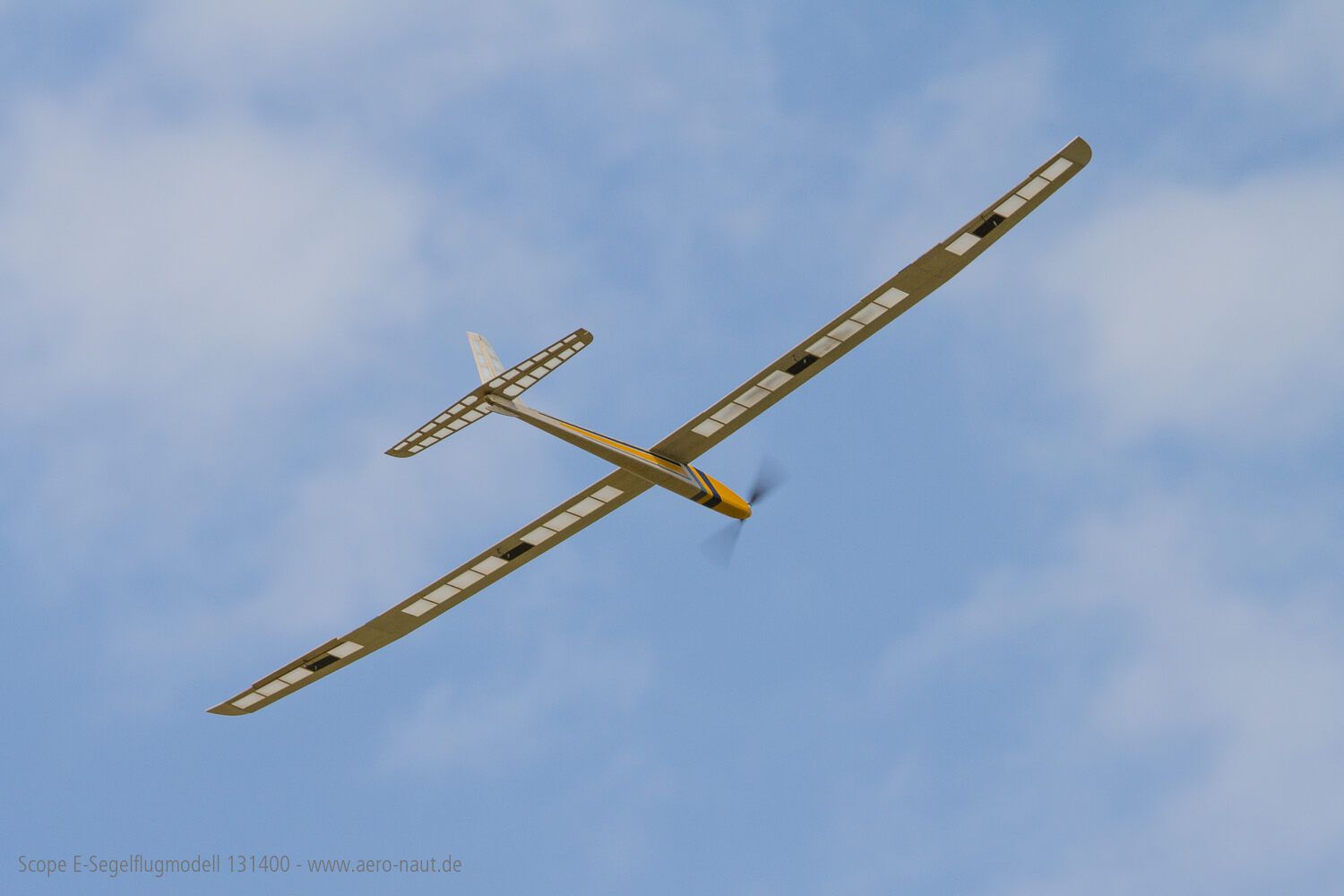

The Scope electric glider has a wingspan of approximately 2,600 mm. This model is suitable for thermal soaring or flying in light slope lift. It also offers an opportunity to gain initial experience using camber flaps or airbrakes.

The Scope can pick up speed and convert it back into altitude, although its flight characteristics are quite docile. However, it is not a "hotliner" and should be flown in a manner appropriate for its class.

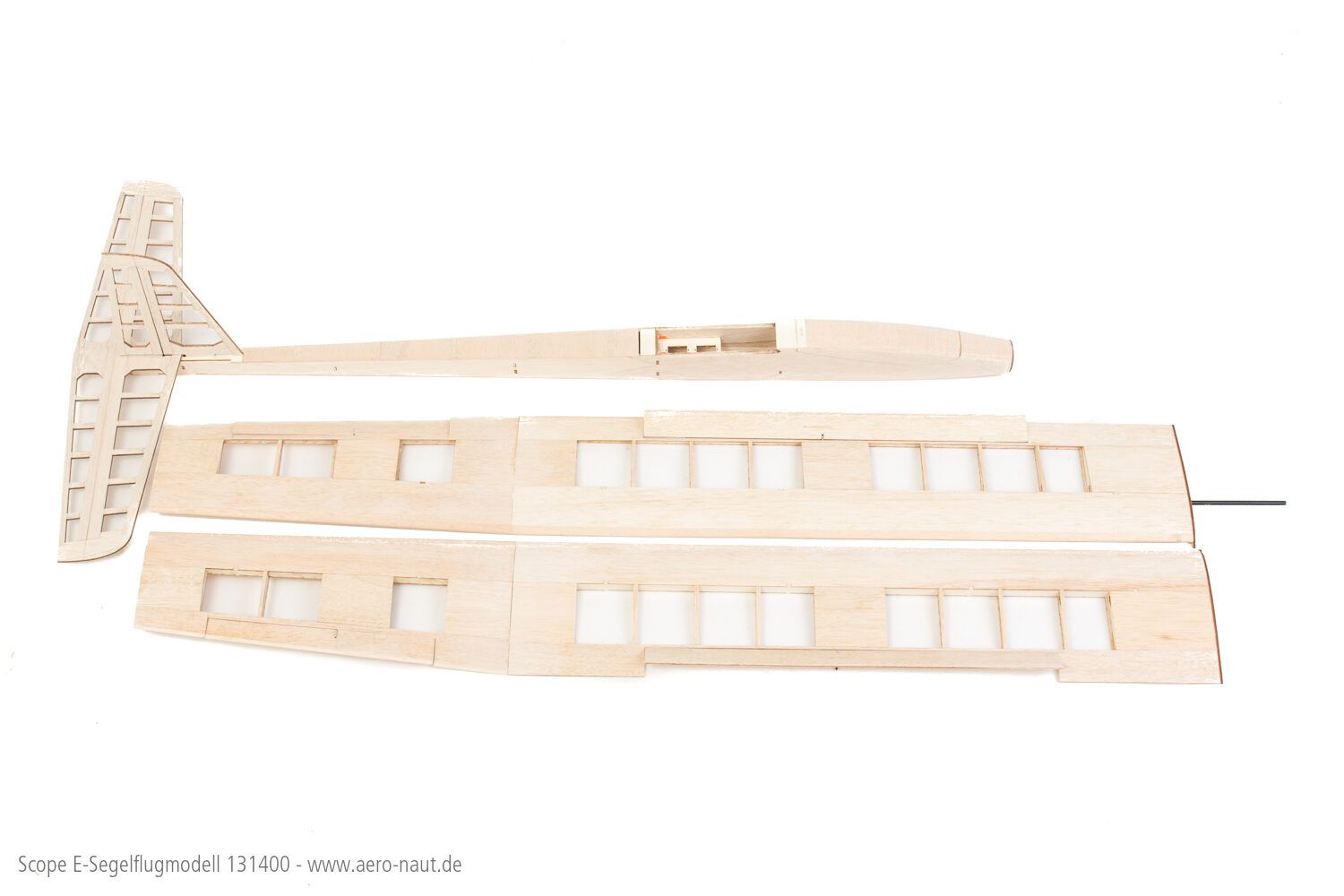

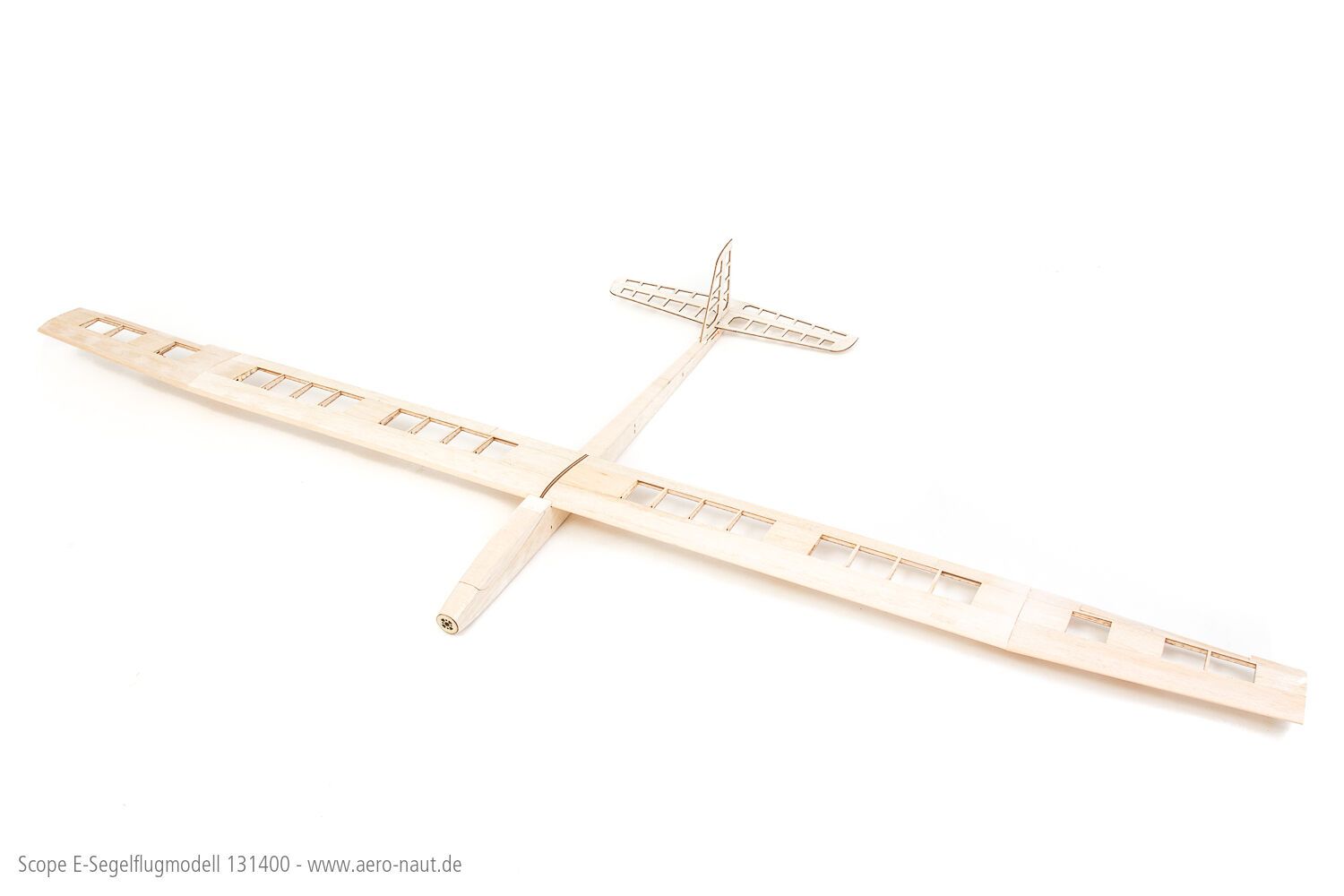

The model features a two-piece wing of rib-and-spar construction, equipped with ailerons and combined airbrake/flap surfaces. The large canopy allows for quick battery changes; a 3S LiPo battery (2,400 mAh) is used.

The kit includes:

All laser-cut wooden parts, small hardware, linkage components, a 3D assembly manual, and a building jig.

A total of 6 servos are required to operate the control surfaces:

2 x AN-12-MGBBA (Order No. 7003/74)
2 x AN-8-MGBBD (Order No. 7003/71)
2 x AN-10L-MGBBD (Order No. 7003/73)

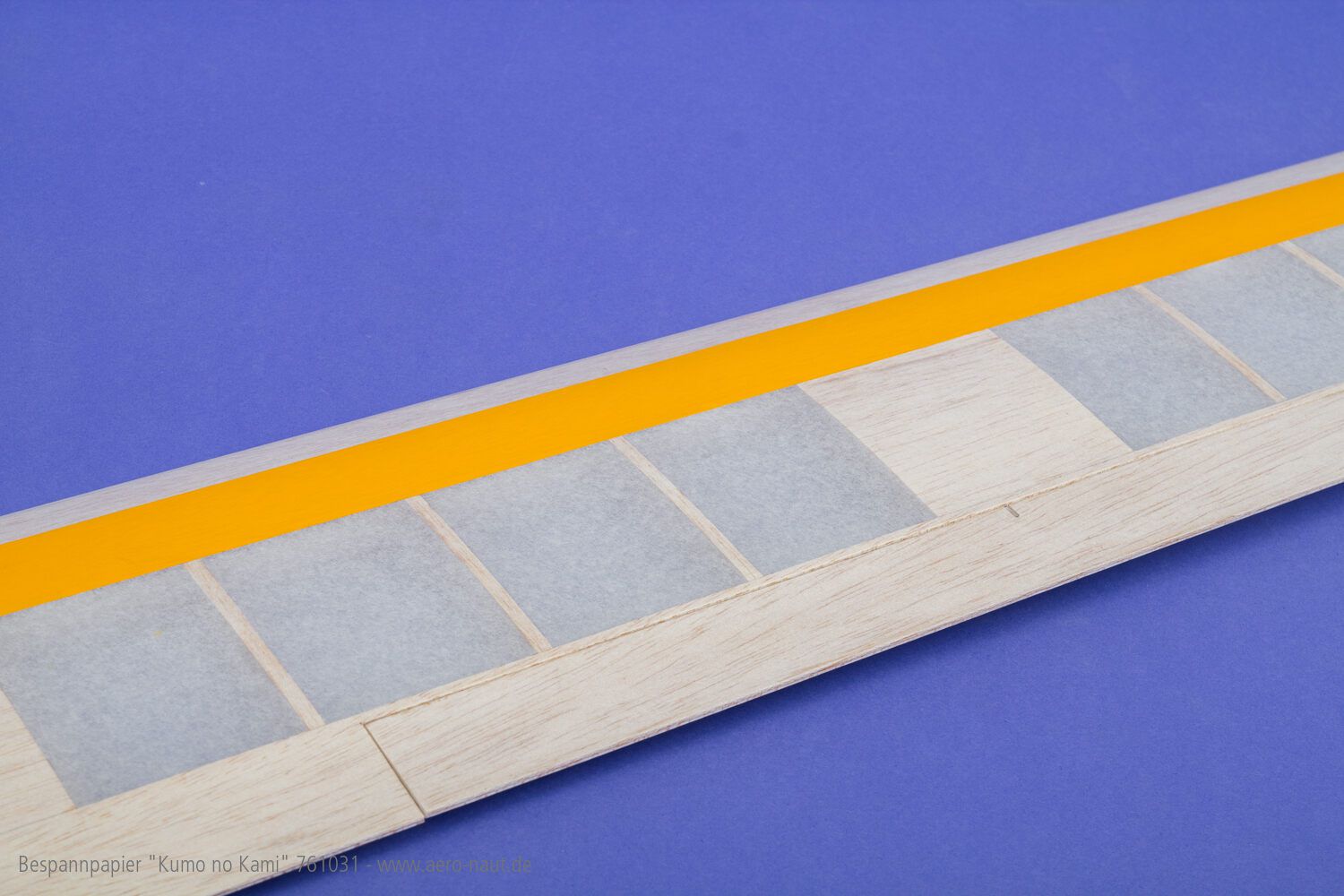

Tissue covering is an excellent finishing option, offering a cost-effective alternative to plastic film coverings. Furthermore, a paper finish provides superior aerodynamic properties. Paint finishes can also be easily applied to a properly prepared surface.

Technical Specifications:

Wingspan: approx. 2,660 mm
Length: approx. 1,250 mm
Flying weight: from approx. 1,250 g
Wing area: approx. 43 dm²
Wing loading: from approx. 29 g/dm²
RC functions: Elevator, rudder,
ailerons,
airbrakes/flaps,
motor control
