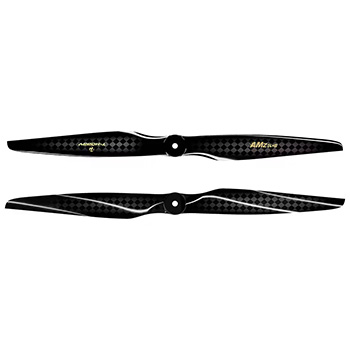

AMZ 24 x 10 Carbon Fibre Propeller — Built for Extreme 3D Power
The AMZ 24 x 10 is engineered for pilots who demand explosive power, instant throttle response, and precise control during the most aggressive 3D maneuvers. Crafted from T800 large-mesh carbon fibre and aerospace-grade epoxy, the AMZ series captures the flying style of top 3D pilots worldwide.
Optimised for 95in - 100in 3D airplanes (80–100cc), the 24 x 10 delivers unmatched efficiency, durability, and stability under extreme load.
Why Pilots Choose the AMZ 24 x 10
Explosive 3D Power Output
Repeated hydrodynamic optimisation ensures fast, linear thrust buildup—perfect for hovering, uplines, and violent power pops.
Zero-Latency Throttle Response
Aerospace-grade core filling and optimized weight distribution produce near-instant reaction to throttle input, ideal for precision 3D flying.
Reinforced T800 Carbon Fibre
16% improved dynamic strength
22% higher fatigue resistance
Minimises deformation during hard manoeuvers
Accurate, Stable, Consistent
The propeller maintains uniform aerodynamic behavior during rolls, waterfalls, pop-tops, knife-edge spins, and high-G manoeuvers.
Perfect Match for T-Motor AM910 Power System
Designed specifically for:
AM910 KV190 Motor (Max thrust 24.6kg)
AM216A ESC (5–14S)
12S 5600-6600mAh batteries
Specifications
Model: AMZ 24 x 10
Diameter: 24 inch
Pitch: 10 inch
Material: T800 Carbon Fibre + Epoxy
Weight (Single Blade): 84g
Recommended Thrust/RPM: 12.7kg / 5650 RPM
Recommended Max Thrust/RPM: 26.5kg / 8270 RPM
Operating Temp: –30°C to 50°C
Storage Temp/Humidity: –10°C to 50°C / <85% RH
Package Size: 690 x 80 x 35 mm
Attribute: Integrated Propeller
What’s in the Box
AMZ 24 x 10 Propeller x 1
Protective Propeller Bags x 2
Premium Packaging Box x 1
Contents of the AMZ Carbon Propeller Box Packaging
Recommended Power System
Motor: AM910 KV190
ESC: AM216A (5–14S)
Aircraft Size: 90in – 96in (70-80cc)
Battery: 12S 5600–6600mAh
