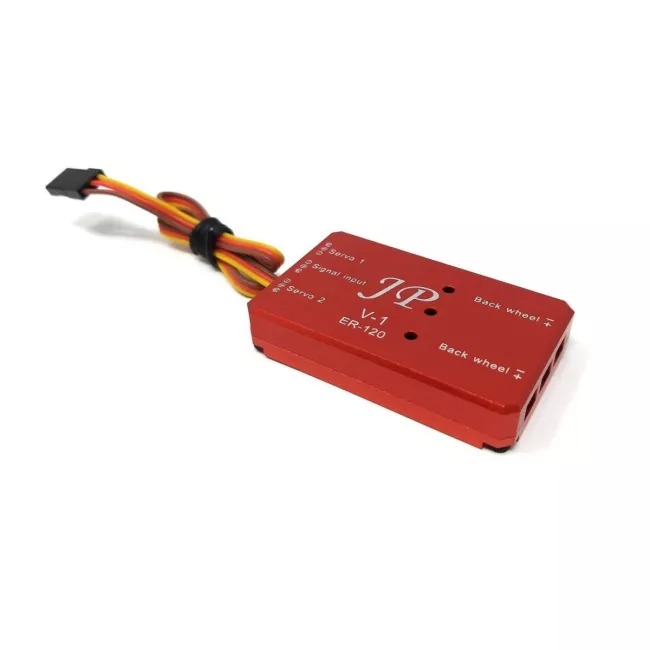

JP Hobby Bicycle Controller Retract Box ER-120 V1 JPH-ERC-120-V1(2C)
£30.99

Brand:  JP Hobby
Part No: JPH-ERC-120-V1(2C)
Barcode: 99000026051
Availability : 4 in stock

Version 2 closes the doors when the gear is down while version 1 keep the doors open. This electronic switch is used to control the sequence of 2 electric retract from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts.  It will work with both sizes of the JP Hobby retracts and other retracts brands.

Data sheet

More info

JP Hobby Bicycle Sequencer Retract Box ER-120 V1

This electronic switch is used to control the sequence of 2 electric retracts from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts.  It will work with both sizes of the JP Hobby retracts and other retracts brands.

IMPORTANT:

• This version of the sequencer, equipped with a 2S power supply, is intended for use with JP Hobby's ER-120 retractable landing gear units only.
• Use this sequencer only for Bicycle landing gear models.
• For the landing gear servos to function correctly, all two retracts must be connected.

Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.

Connections

Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug

Connect the doors servos to the "Servo 1" and "Servo 2" plugs

Connect the "signal input / DC 6V" wire and plug to your receiver "gear" channel

Specifications

• Input voltage: 5V to 6.4V
• Size: 52 x 32 x 10 mm
• Weight: 22 gr
