EA V3 FEATURES:
- 1.New appearance,new design all parts,parts strength and heat dissipation channel to further enhance.
- 2.With a wider arc magnet,Japanese 0.20mm silicon steel laminiation,providing strong torque.
- 3.Rotor dual balancing process,NMB bearings,smooth acceleration and deceleration,can bear a higher speed.
- 4.It adopts 220-class enamelled wire and the high-temperature epoxy,with a five-star overload resistance grace.
- 5.Multi-purpose design to support both-end installation namely:Firewall Front installation(default) and firewall back installation.
SPECIFICATION
| Motor Name |

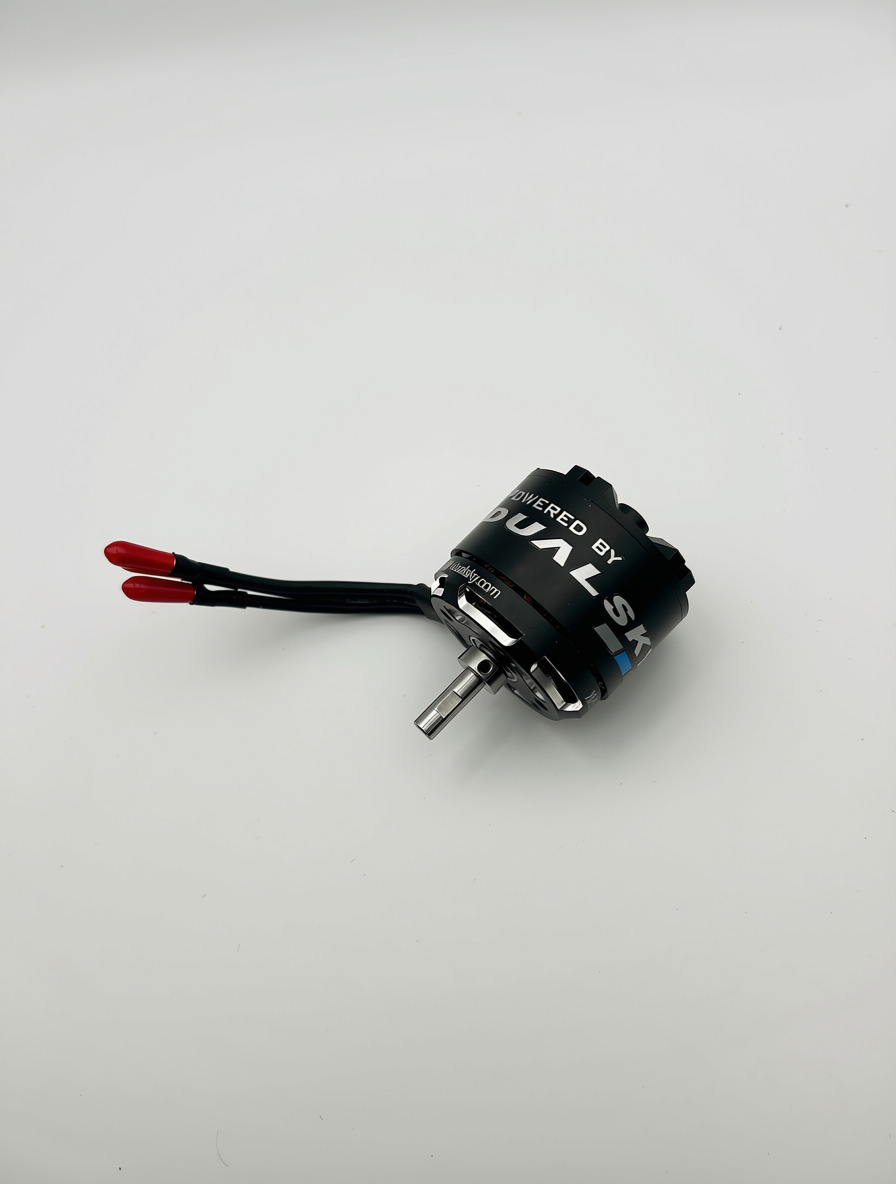

XM5050EA-14 V3 |
| KV |
515 |
| Weight (g) |
292 |
| Dimensions (D x L) (mm) |
49.5 x 48.2 |
| Diameter of Shaft (mm) |
6.0 |
| Spec. of Mounting Holes |
4-M3, 30/30 |
| Input Connectors |
DB4 |
| Dimensions of Stator (mm) |
4120 |
| Slots & Poles |
12N14P |
| Ri(mOhm) |
18.5 |
| Io@10V (A) |
1.5 |
| No. of Cells (LiPo) |
5.61 |
| Efficiency Current (A) |
32.5 |
| Burst Current (15S) (A) |
65 |
| Peak Power (15S) (W) |
1560 |
| Peak Torque (N-M) |
1.51 |
| Recommended ESC |
Summit 100 |
| Recommended Propeller |
5S: 16 x 8E, 17 x 8E 6S1: 15 x 8E, 16 x 8E2 |
| Application |
70E, .50 - .60 2-Stroke up to .82 4-Stroke |
1 Suggested working voltage (NOC)
2 Good throttle management needed
