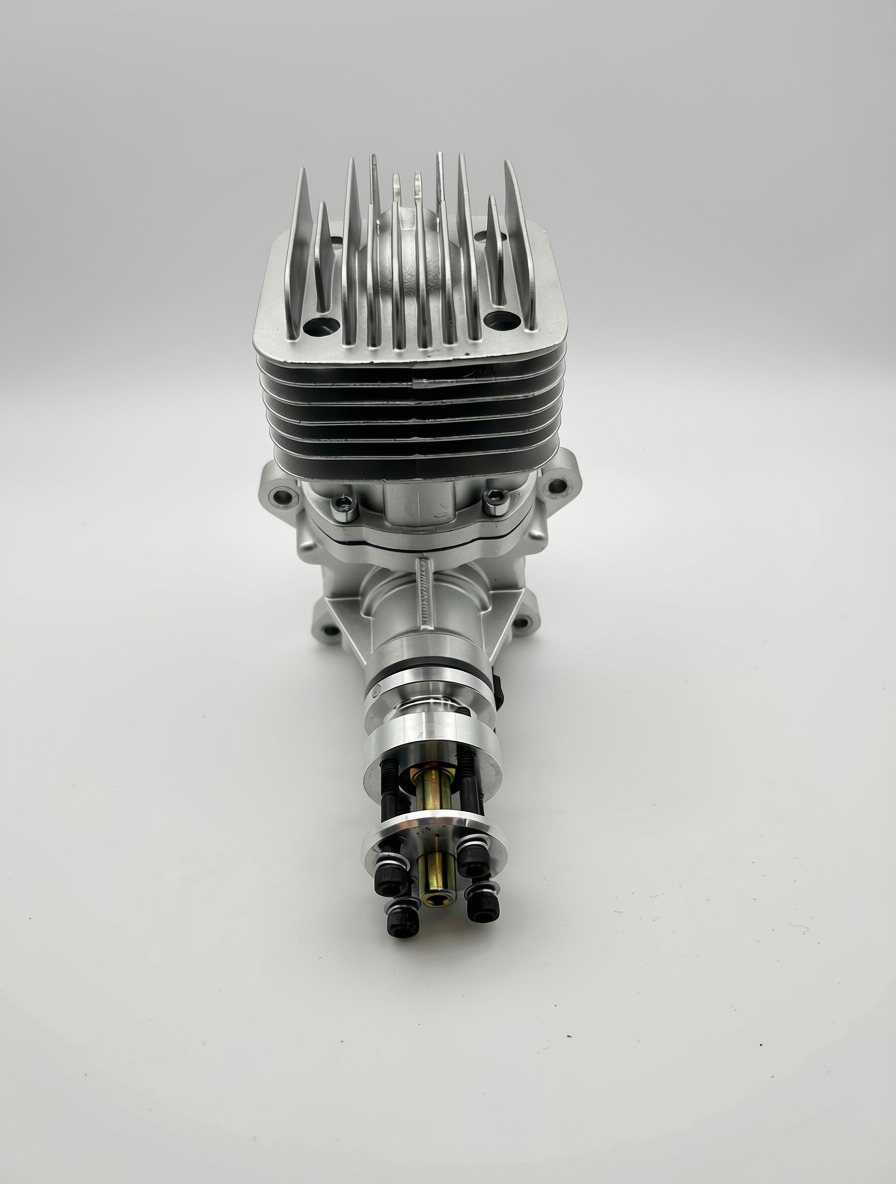

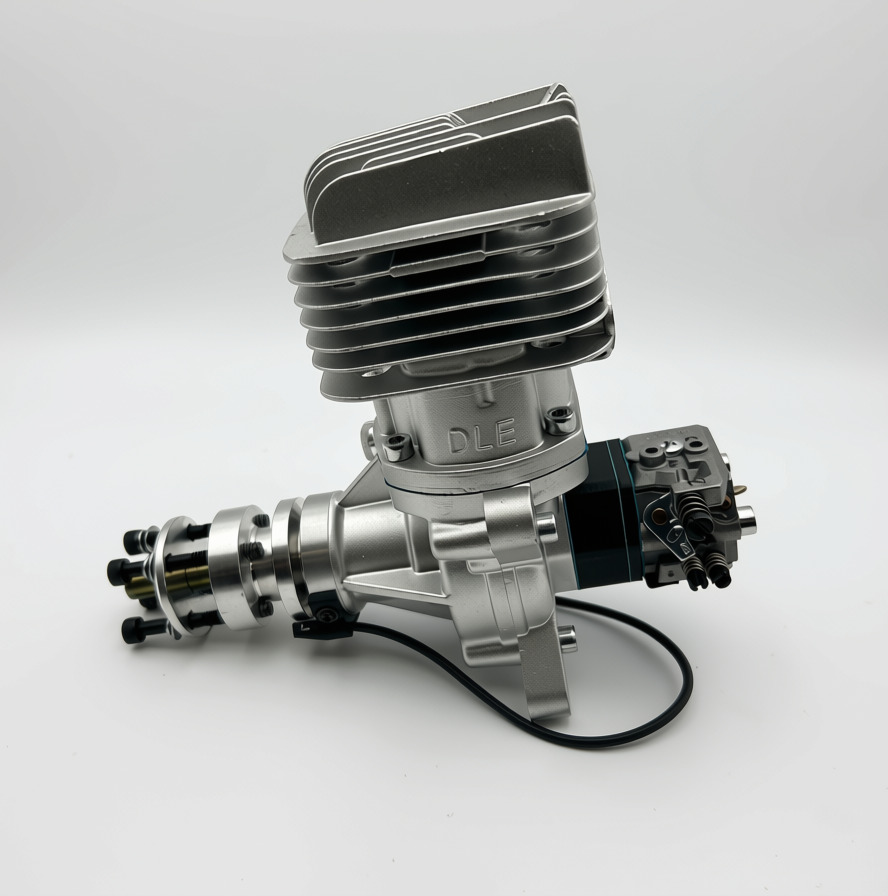

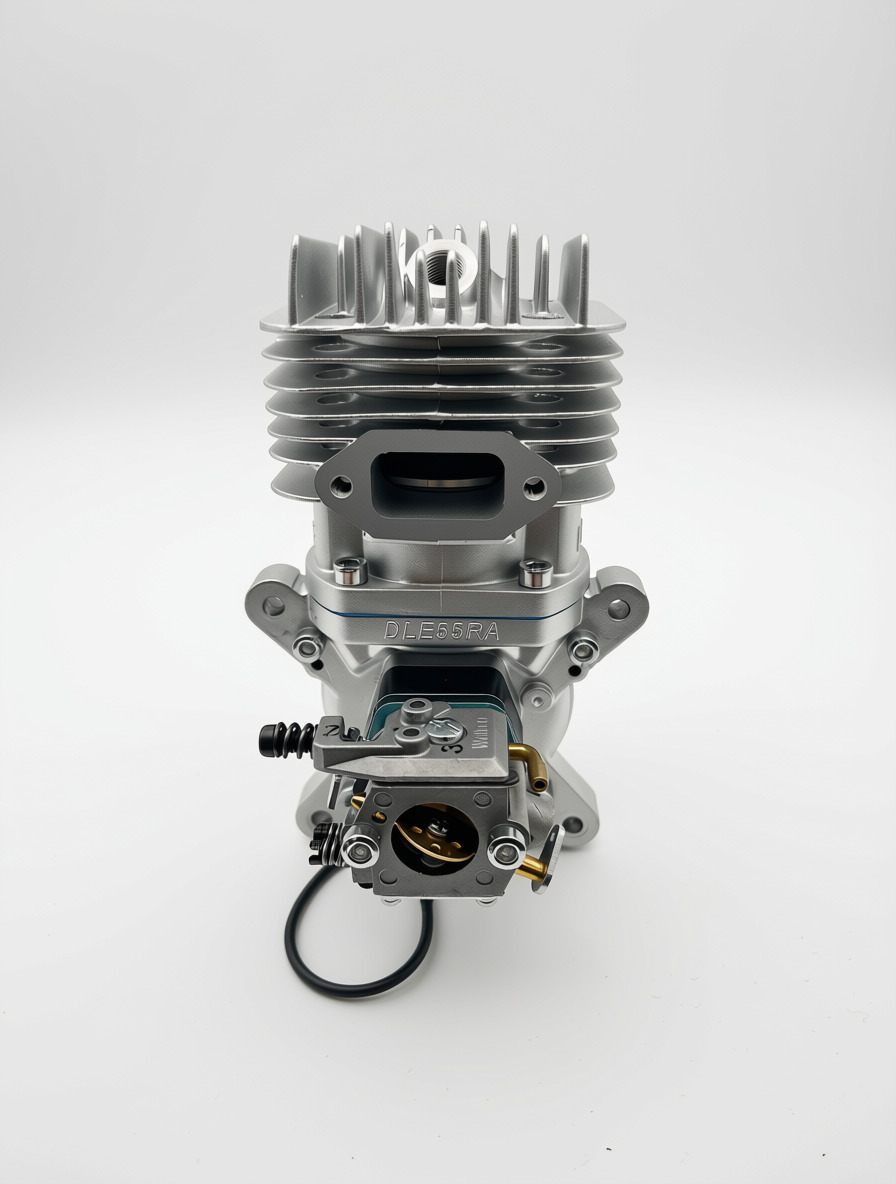

DLE-55RA Two Stroke Petrol Engine - Used MSLNN01

DLE-55RA Two Stroke Petrol Engine - Used MSLNN01

DLE-55RA Two Stroke Petrol Engine - Used MSLNN01

DLE-55RA Two Stroke Petrol Engine - Used MSLNN01

DLE-55RA Two Stroke Petrol Engine - Used MSLNN01

DLE-55RA Two Stroke Petrol Engine - Used MSLNN01

This has been run but does come with a warranty



Product Features

  • Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
  • Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.

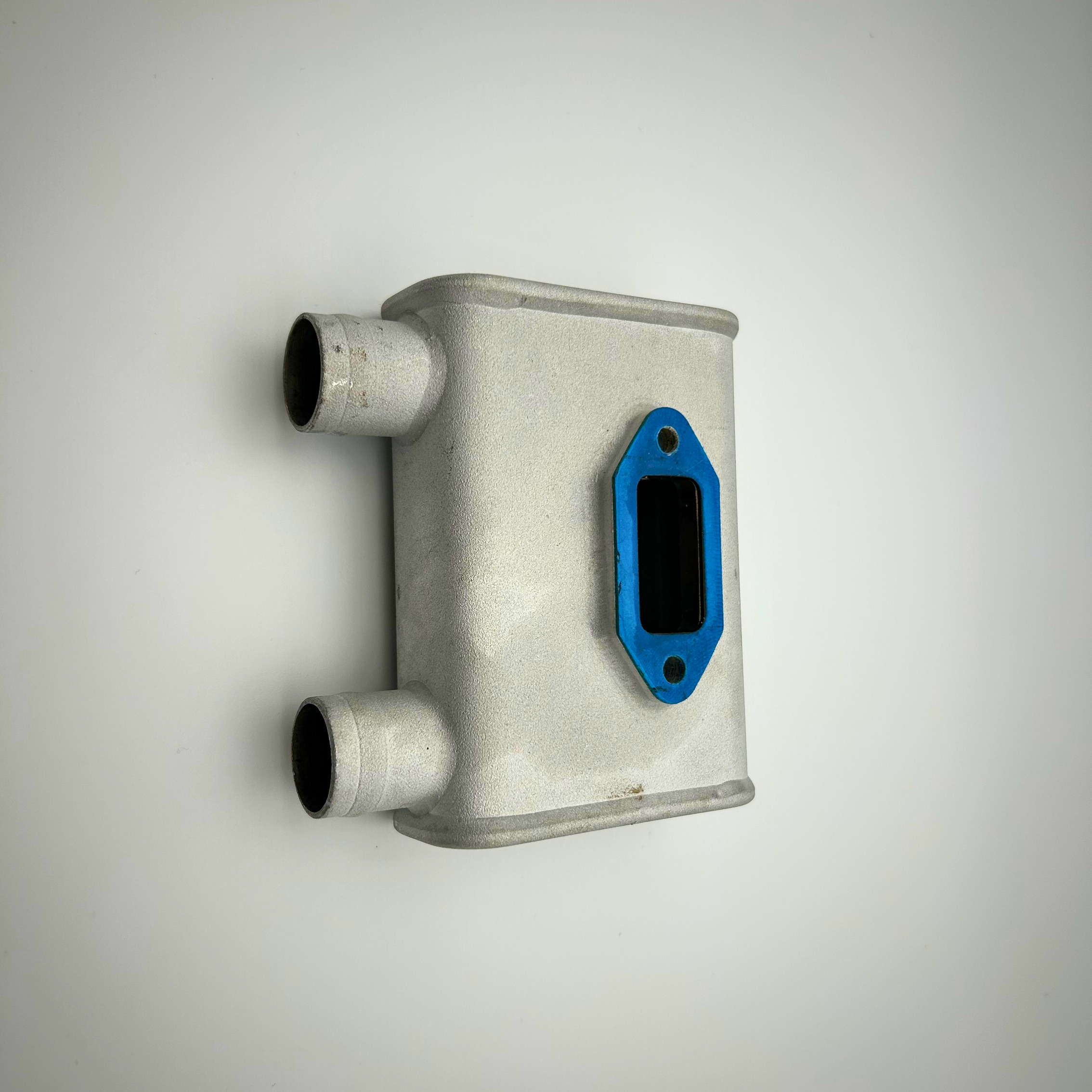

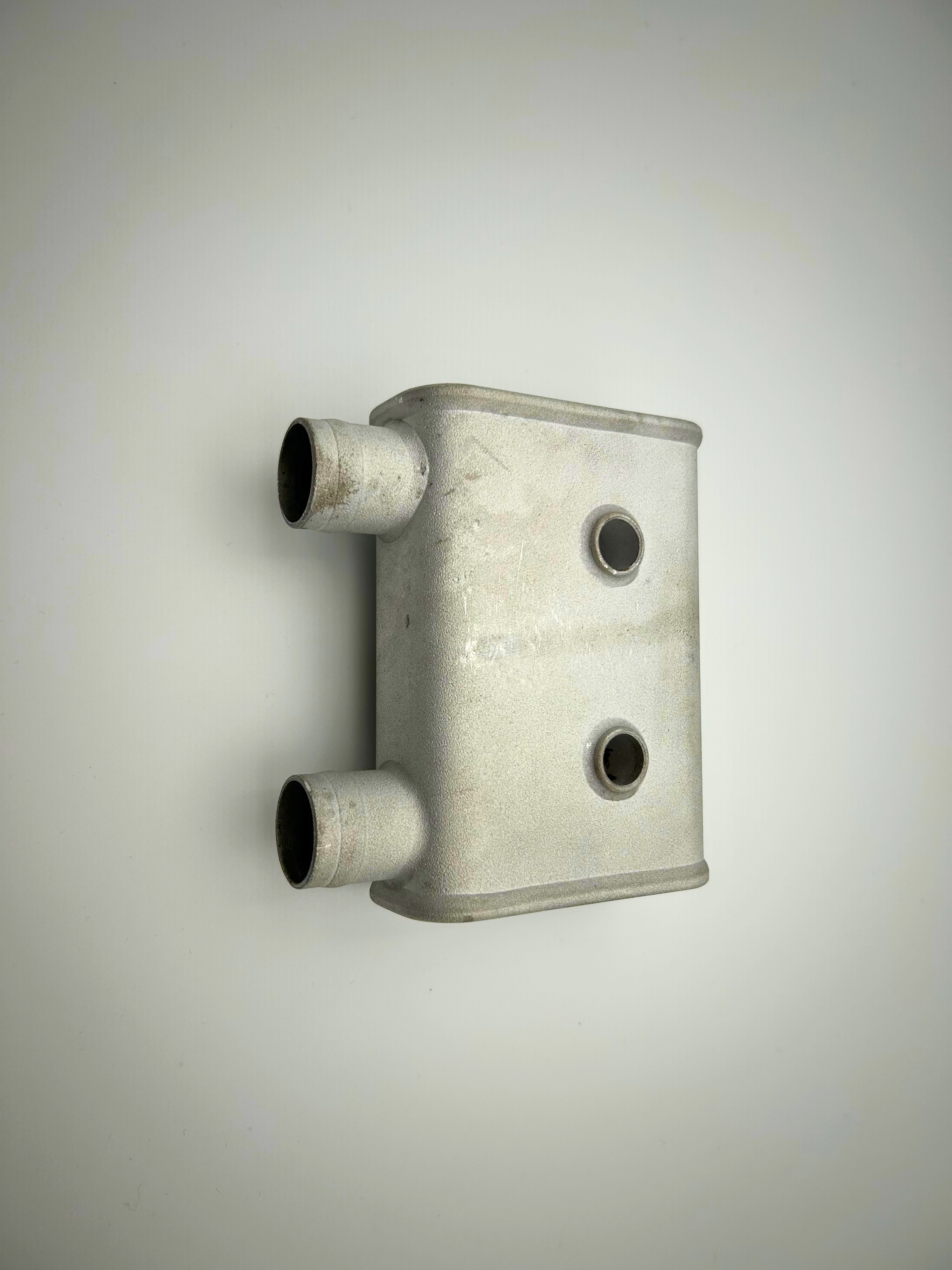

  • Included 2-stage Pitts muffler reduces back pressure and increases power.
  • Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.

More power!

Producing 100 rpm more than the DLE-55, the DLE-55RA screams performance - from the lightweight piston skirt that speeds throttle response to the rear exhaust design that permits easy tuned pipe installation. Ideal for warbirds and aerobatic aircraft, it comes with engine standoffs, electronic ignition, spark plug and Pitts style muffler.

IMPORTANT NOTICE: We highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.

Specifications:

Displacement: 55.6 cc (3.4 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 3.74 (1.7 kg)
RPM Range: 1,500-8,500
Output: 5.5 hp @ 8,500 rpm
Requires: Unleaded Petrol (Gasoline), oil, ignition battery & propeller

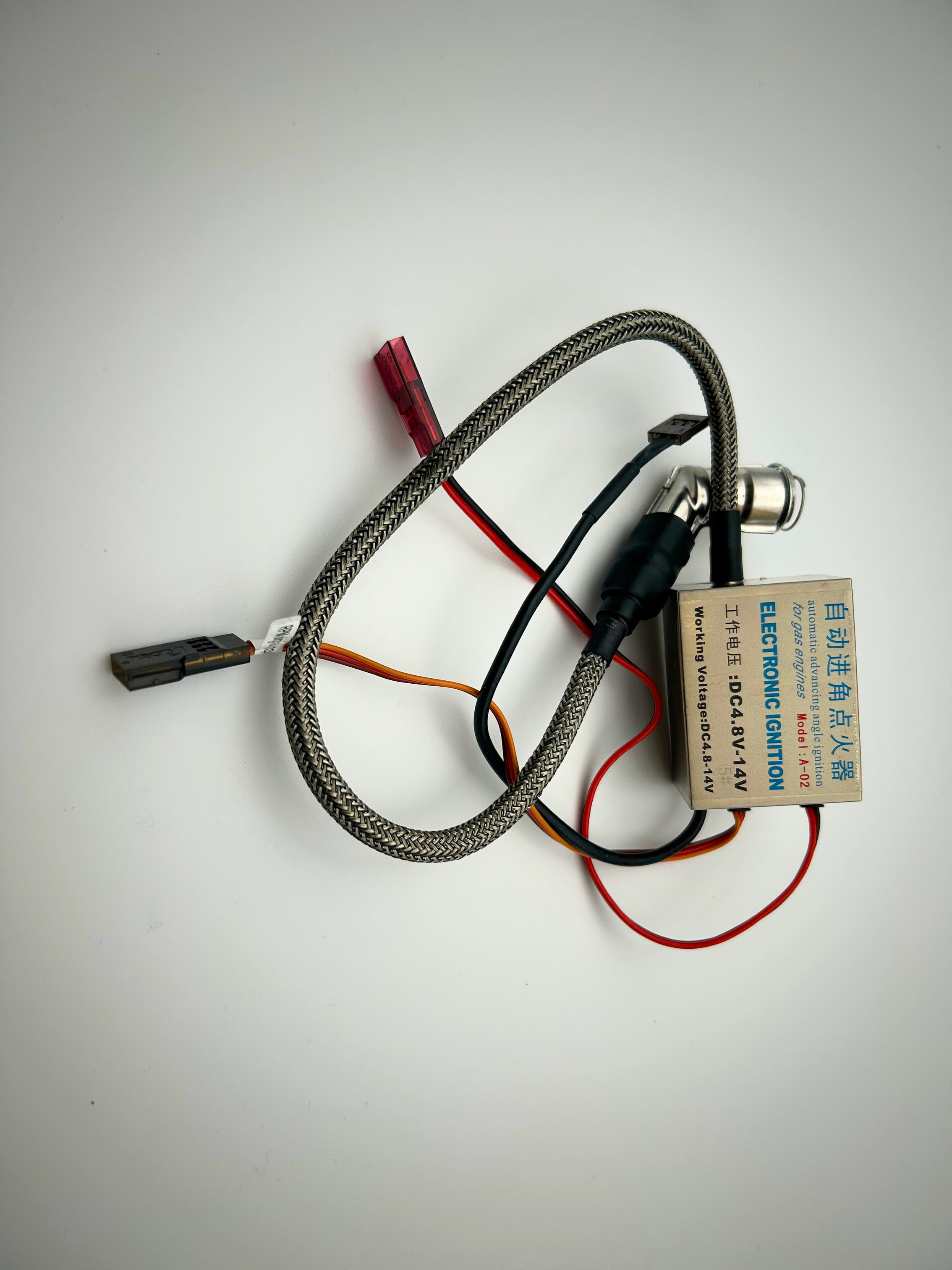

Includes: Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb

Technical Data:

Ignition Battery: 4.8V-12V (Voltage regulator required if LiFe or LiPo pack is used)
Compression Ratio: 7.6:1
Petrol/Oil Mix: 30:1
Weight Breakdown: Engine: 46.74 oz (1325 g); Muffler: 3.17 oz (90 g); Ignition: 5.11 oz (145 g)




Manufacturer Info
DLE Engines
