Amewi Bell 222 Airwolf Pro GPS Helicopter 8-Channel 3D/6G RTF 25362
£424.99

Shipping from:
£9.95

Brand:  Amewi
Part No: 25362
Barcode: 4262500343384
Availability : 1 in stock

The Bell 222 is a twin-engine civil helicopter that was developed in the 1970s and delivered from 1980 onwards. A visually modified version gained particular fame through the television series Airwolf.

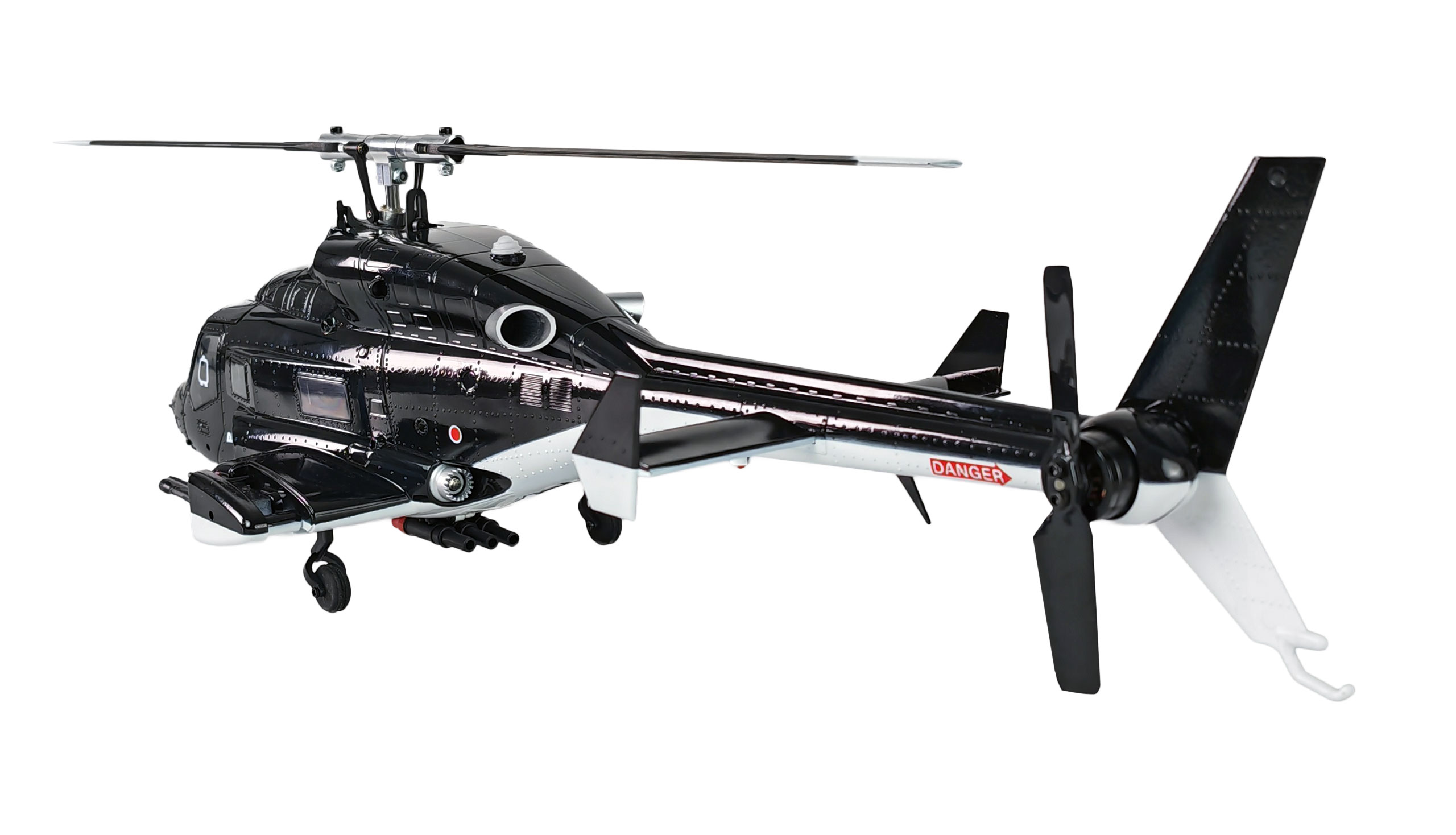

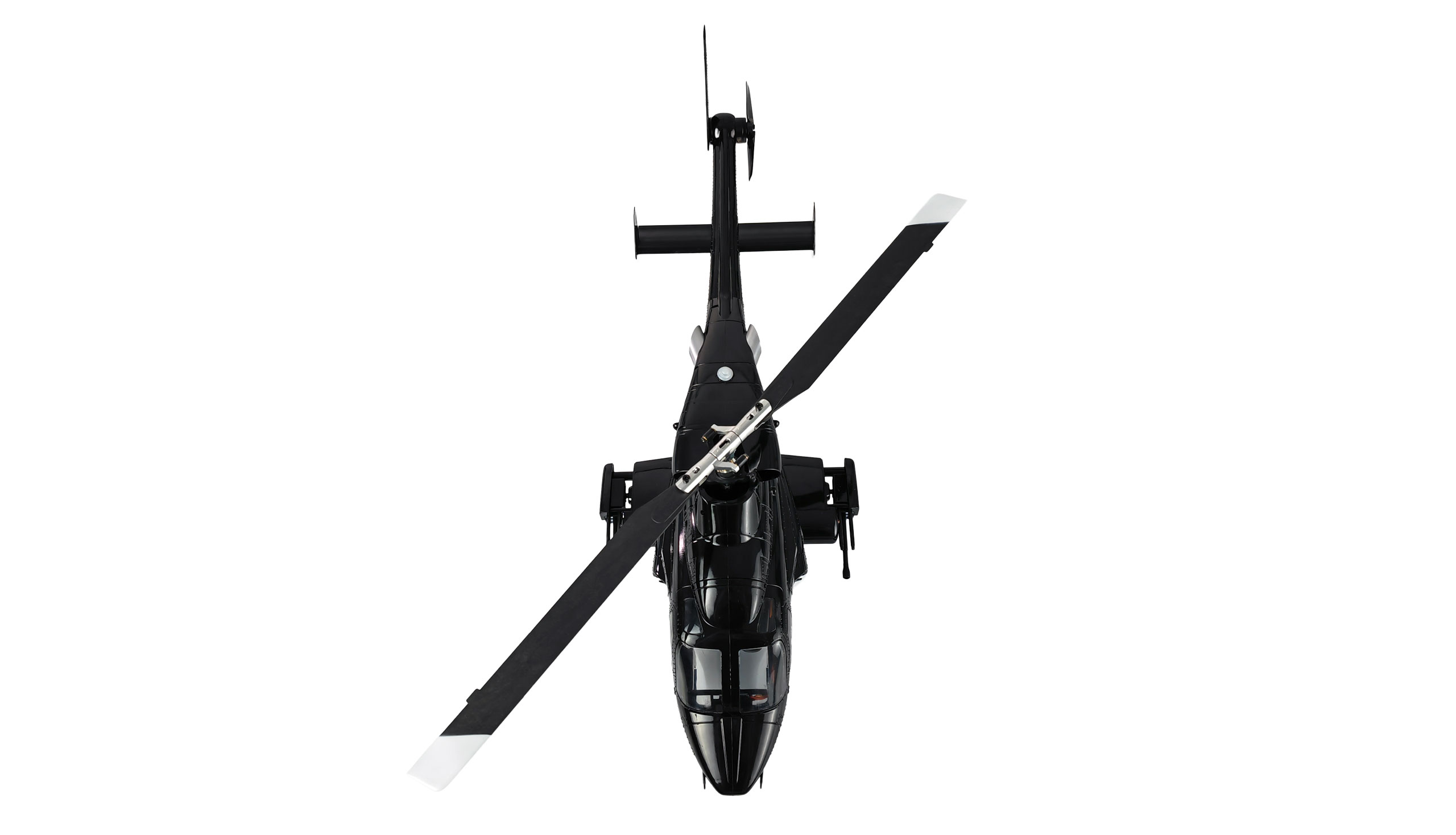

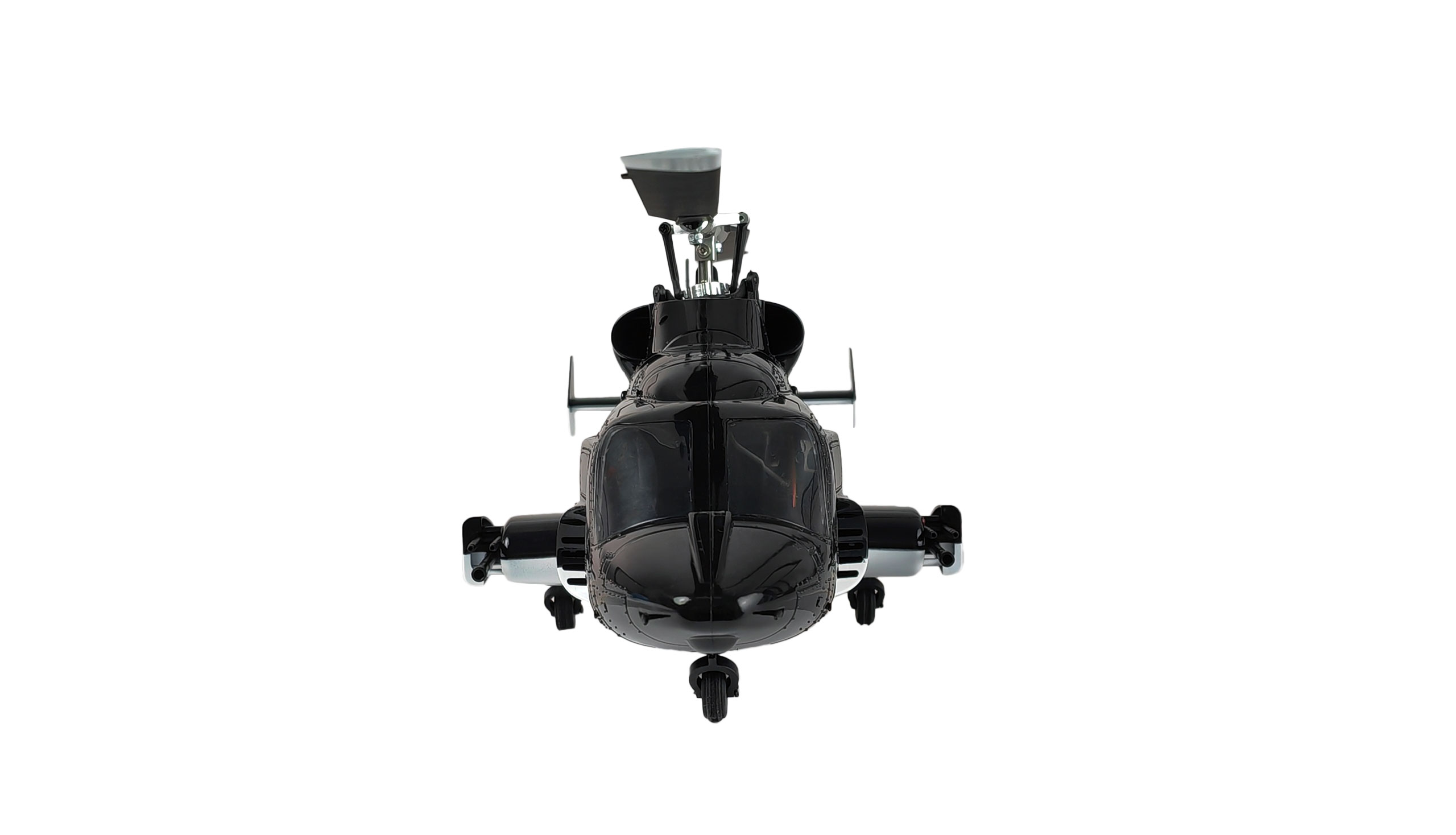

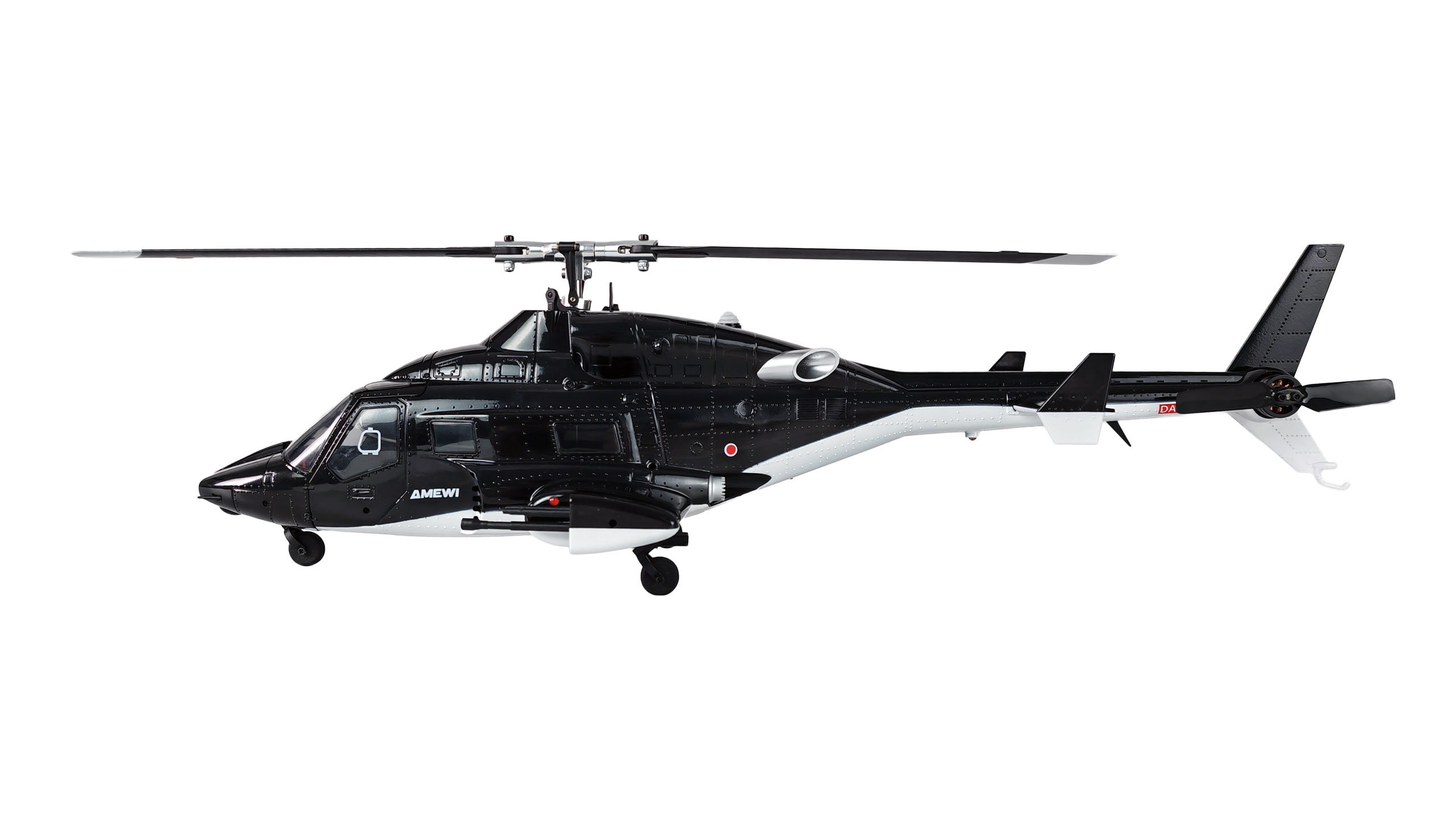

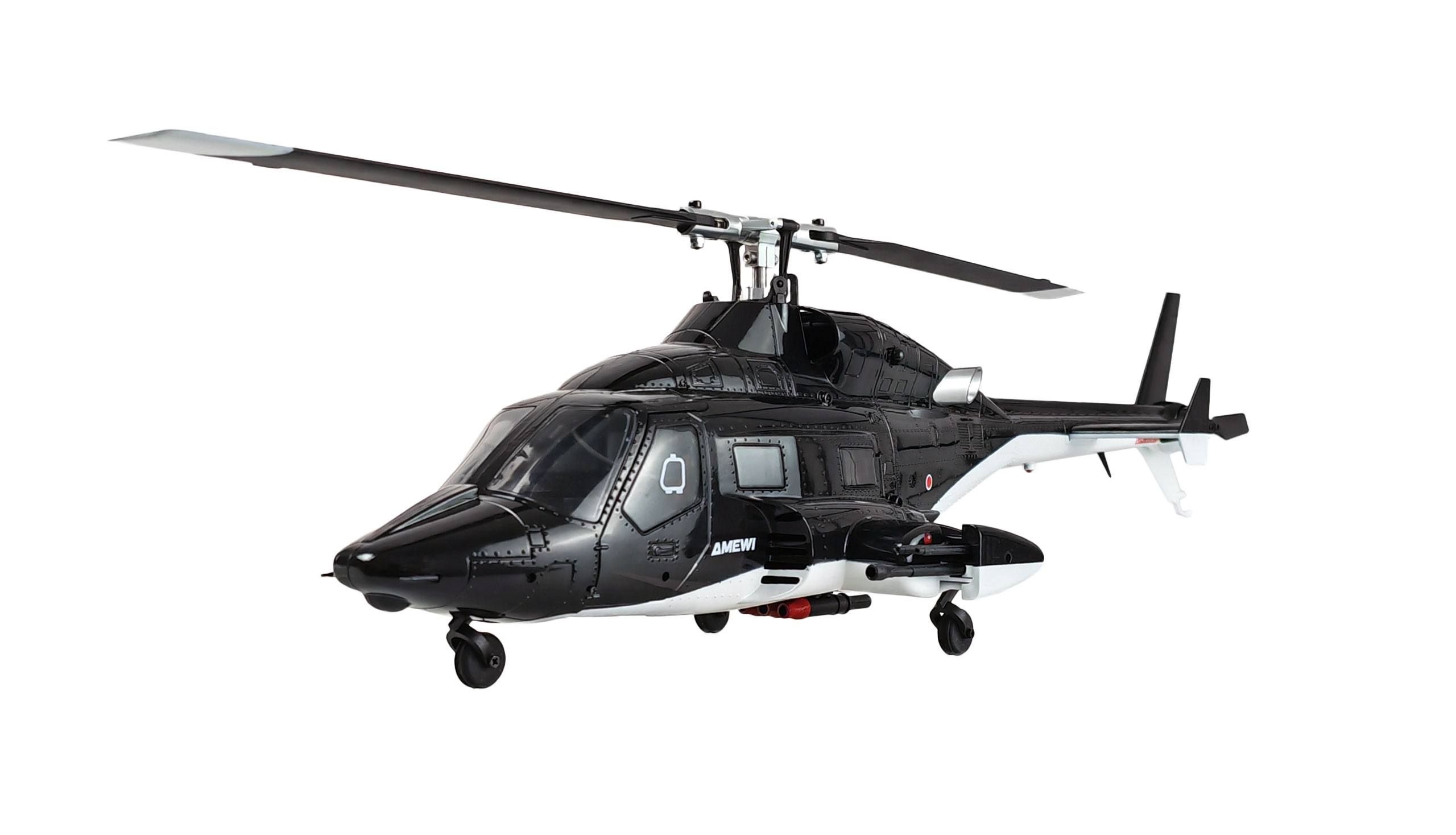

The scale replica of the Airwolf helicopter in the GPS Pro version is rich in detail: the characteristic black and white paintwork, replicas of the on-board weaponry and integrated LED lighting give the model a striking appearance. The fuselage is made of robust ABS plastic. The rotor head, blade grips and parts of the swashplate are made of aluminium. Brushless motors with 1200KV on the main rotor and 5500KV on the tail rotor provide the power. In combination with the supplied 7.4V 1200mAh LiPo rechargeable battery, the system offers sufficient power for dynamic flight manoeuvres.

Flight stability is ensured by several sensors: a 6-axis gyro system (6G), a GPS module with compass function, a barometric altimeter and an optical altimeter. The control system is equipped with a dual-rate function that allows either reduced or full servo deflections. The swashplate movement is performed by four digital 4.3g mini servos with metal gears and an adjustment speed of 0.05 seconds to 60 degrees. The model has a reverse flight function that can be activated from a height of approximately five metres. A status LED on the upper part of the helicopter indicates the current battery status. When the battery voltage drops, a visual warning is given, followed by an automatic landing if there is no response. This Bell 222 Airwolf can be operated in both Mode 2 (throttle left) and Mode 1 (throttle right). In sensor mode, the maximum flight altitude is limited to approximately eight metres.

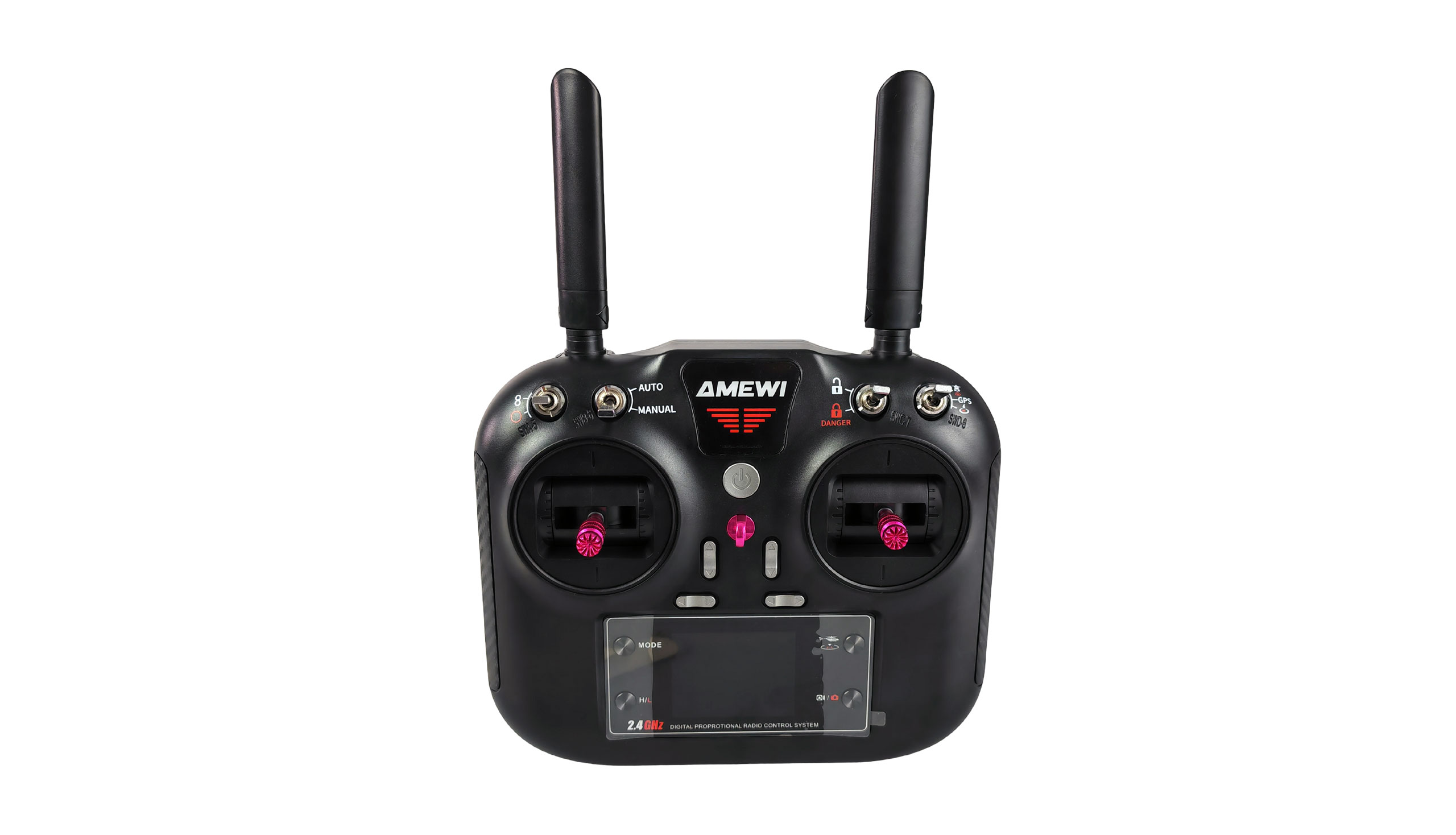

Advanced flight functions are available in GPS mode. These include one-key return, automatic eight-flight, circular flight, a virtual safety fence, automatic return to the starting point and autonomous landing when the battery voltage is low or when the range is exceeded. The remote control has been specially adapted for this model and features an 8-channel dual system with two antennas for telemetry and transmission data. It displays real-time information on flight speed, altitude, distance, direction, flight mode, GPS signal strength, battery voltage in the model and the selected control mode.

Highlights:
Barometric and optical positioning system including GPS with compass function: For stabilised flight mode and automatic altitude hold as well as automatic return to the take-off point
Autonomous flight manoeuvres such as flying figure eights and circling at the touch of a button on the remote control
Intelligent protection system when the rechargeable battery is empty: the model lands automatically if the pilot does not respond to the status LED warnings

Further features:
RTF set (Ready-to-Fly) including remote control, rechargeable battery, charging cable
Scale landing gear with rubber tyres
Intelligent flight control with many safety features such as Come Home and Landing, automatic return when range is exceeded,
LED position lights and status LED
7.4V 1200mAh LiPo rechargeable battery included for more power and longer flight times
Mode 1 and Mode 2 selectable
Dual rate for speed (beginners to professionals)
Remote control with serrated aluminium sticks for better grip with your fingers when controlling
Rotor head, blade grips and parts of the swashplate made of aluminium
Ultra-fast metal gear servos with 0.05 ms at 60
Main rotor with direct drive via a 1200KV brushless outrunner motor
Tail rotor with direct drive via a 5500KV brushless outrunner motor
Flying upside down at the touch of a button on the remote control

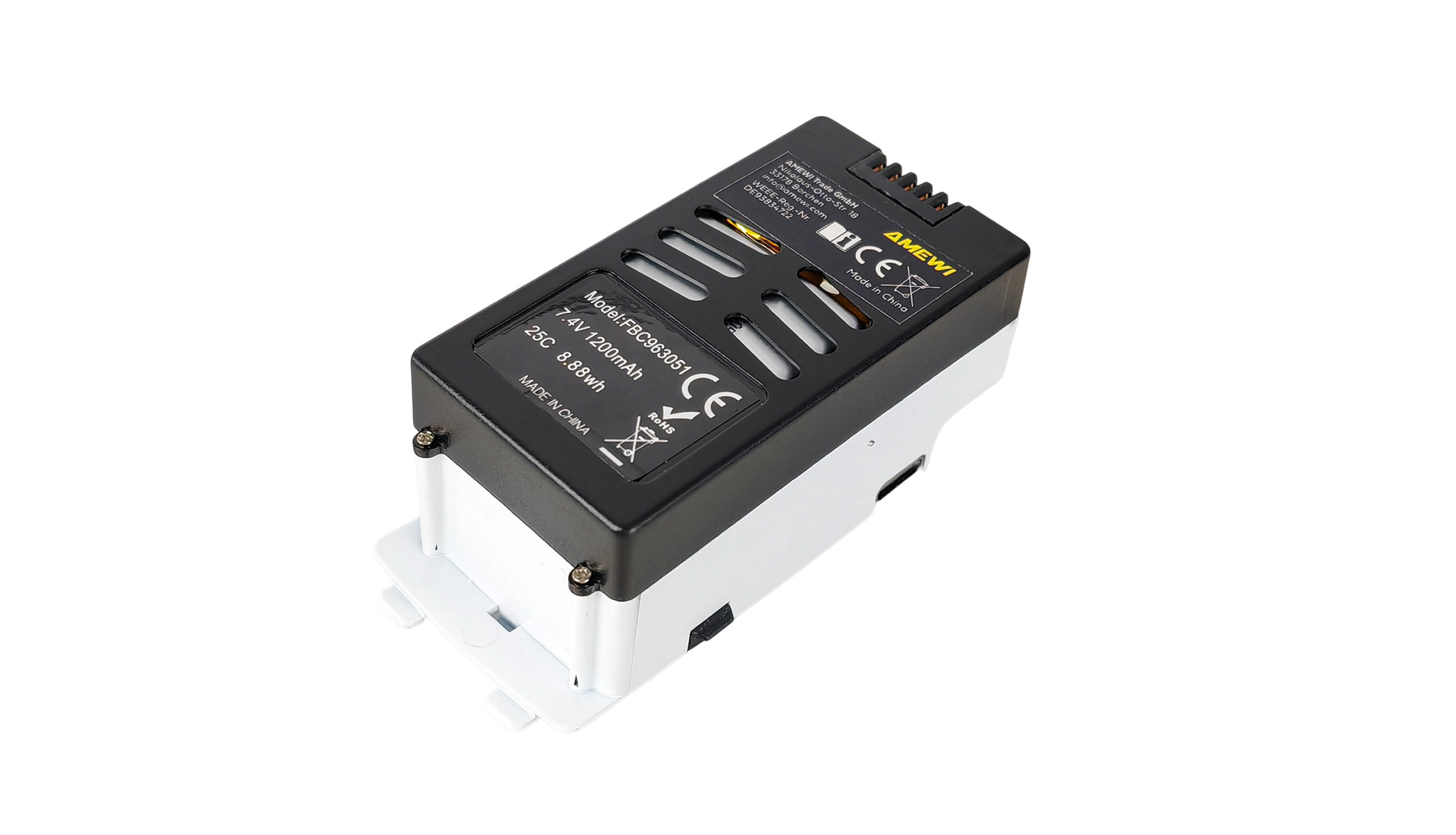

Rechargeable battery with built-in LiPo tester, USB-C charging port and 5V output for special parts such as searchlights or similar.

Technical data:
Fuselage length: 415 mm
Fuselage width: 135 mm
Fuselage height: 118 mm above tail fin
Rotor diameter: 375 mm
Tail rotor: 74 mm
Main material: plastic
Main motor: brushless 2511/1200KV
Tail motor: Brushless 1204/5500KV
Weight ready to fly: approx. 332g incl. rechargeable battery
Remote control: 8 channels, 2.4GHz, Mode 2, Mode 1
Range: approx. 100-120 metres
Servos: 3x fast micro digital 4.3g servos with metal gear / 0.05ms 60°
Rechargeable battery: LiPo 2S 7.4V 1200mAh 25C hard case, 74x34x31mm, 78g
Flight time: 10-12 minutes
Charger: USB
Charging time: approx. 60-80 minutes

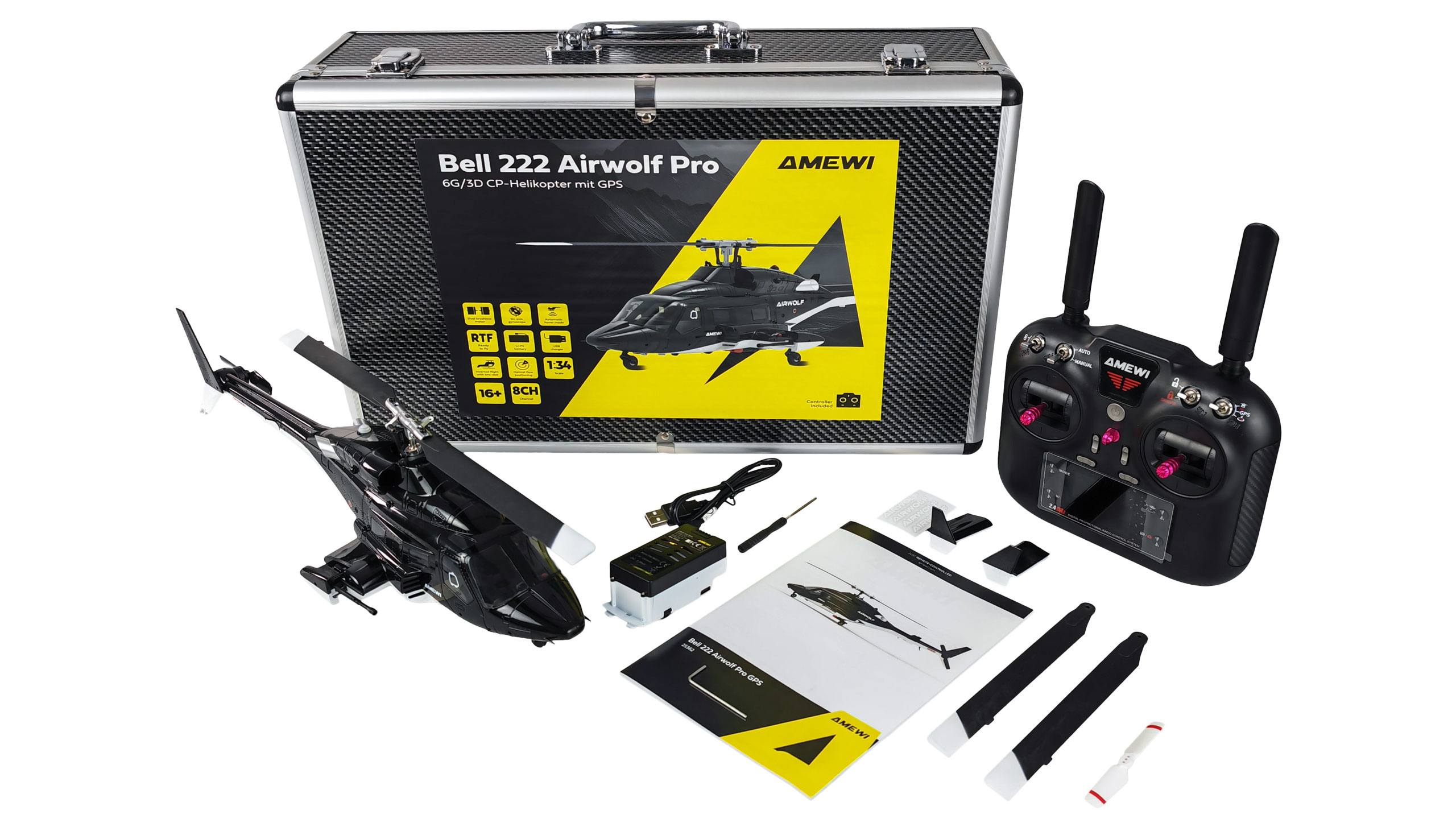

Scope of delivery:
Model
Remote control
Rechargeable battery
Charging cable
Tools
Spare rotor blades front/rear
Instructions DE/EN

Required accessories:
4x 1.5V AA batteries for the remote control
