Proxxon Automatic universal axial feed AV/E P-24326
£406.06

Shipping from:
£9.95

Brand:  Proxxon
Part No: P-24326
Barcode: 4006274243262
Availability : Special Order

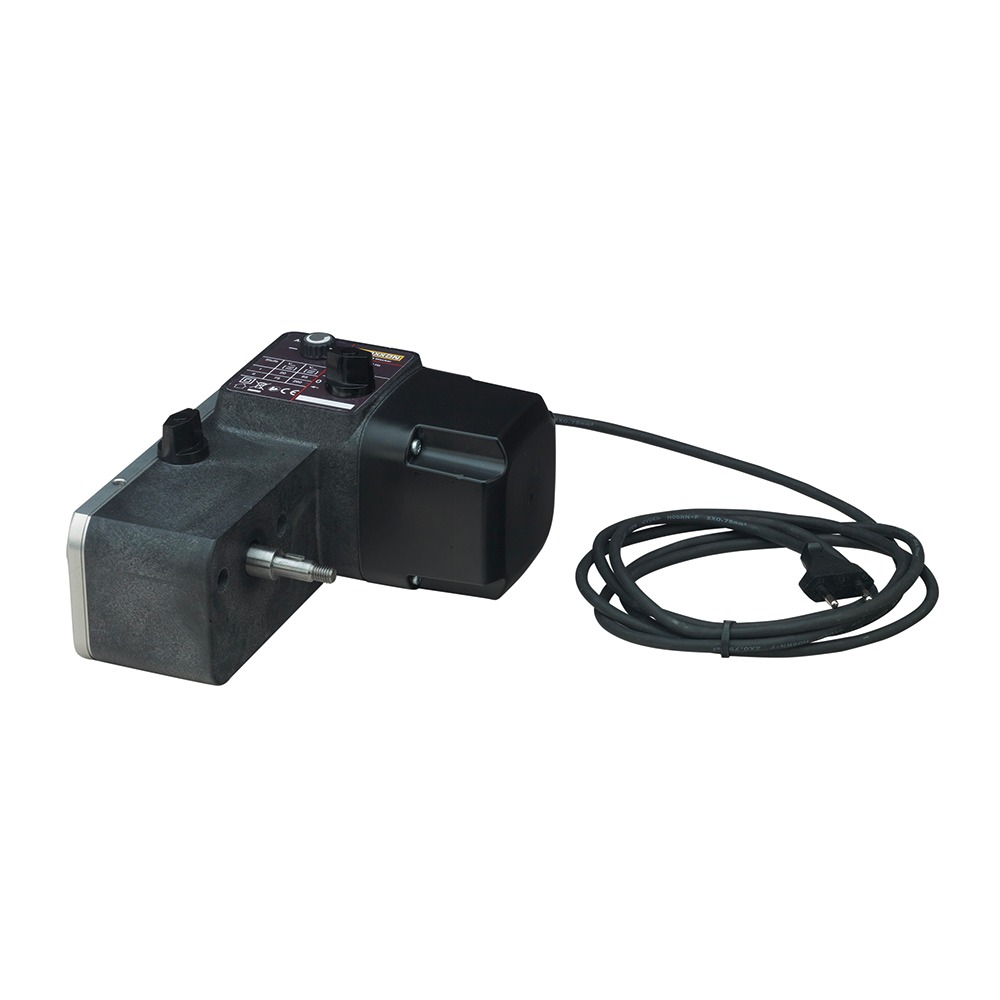

Automatic universal axial feed AV/E

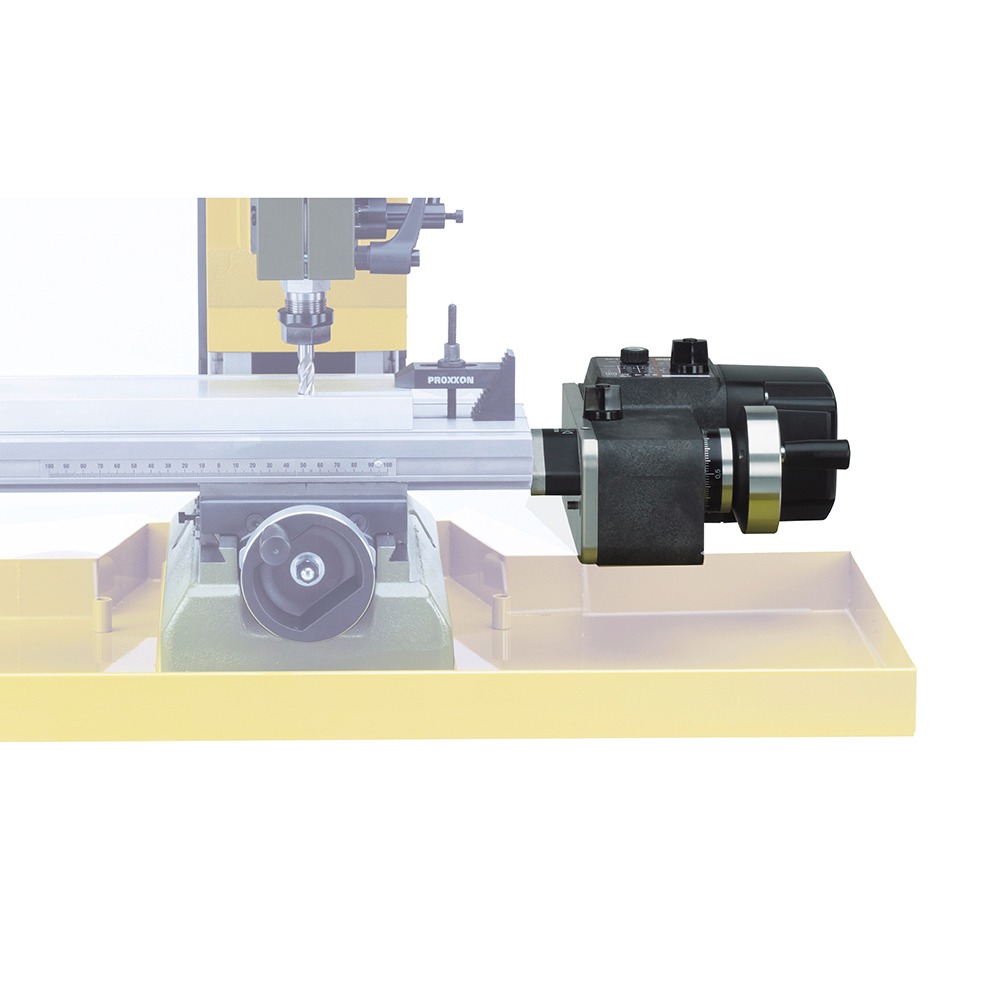

For the X axis of the Milling machine FF 500/BL. Will also fit the predecessor compound table KT 400 and the Milling machine FF 400. Simple assembly: The unit is mounted to the compound table with two bolts and automatically drives the spindle of the X-axis. For manual operation the handwheel needs to be mounted on the spindle of the drive-axis. Balanced special DC motor with electronic speed control (full-wave electronics). Manual drive with freewheeling function and two speed levels: Stage 1 for common machining (20 – 75mm/min). Stage 2: for machining at higher speed or quick adjustment of the X axis (90 ? 260mm/min). Freewheeling function for manual operation by handwheel. 230V. 100W. 50/60Hz. Spindle speeds 10 – 130rpm. Dimensions: H 120, W 170, D 210mm. Weight 3.5kg. Insulated to Class 2.
