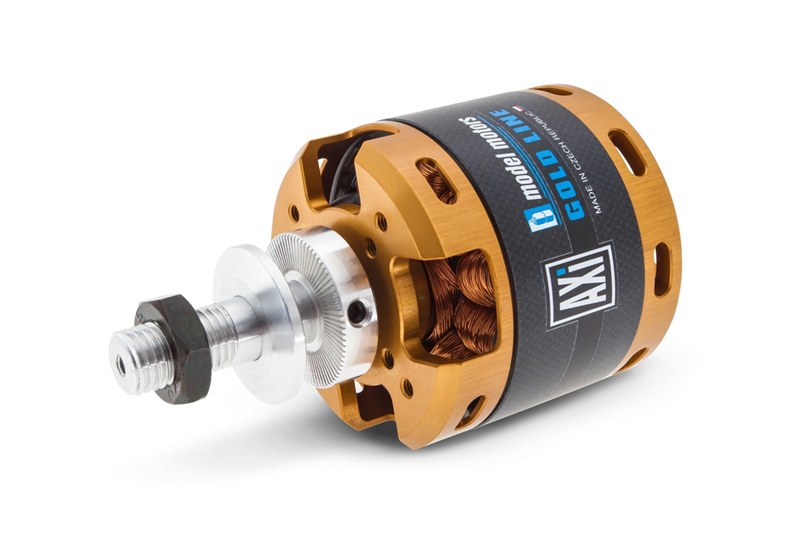

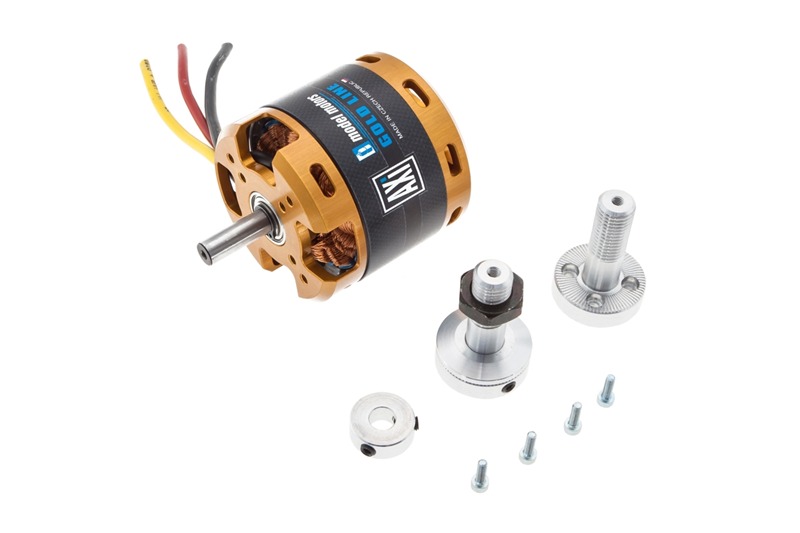

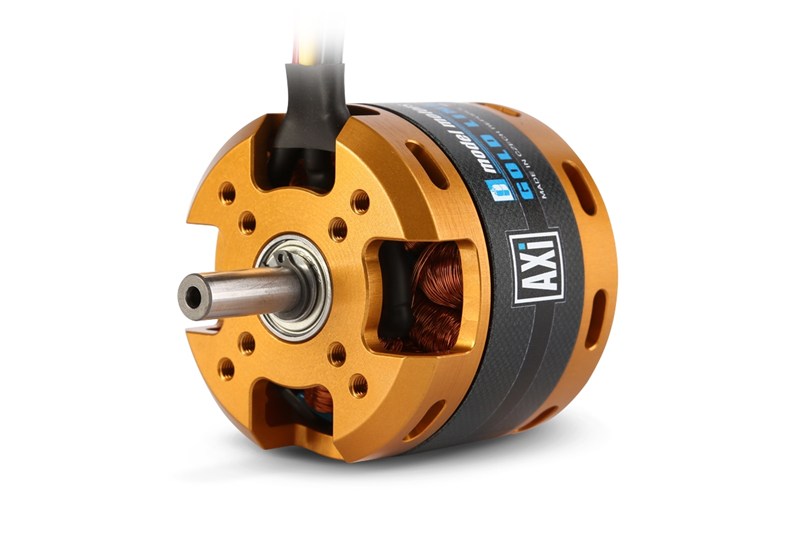

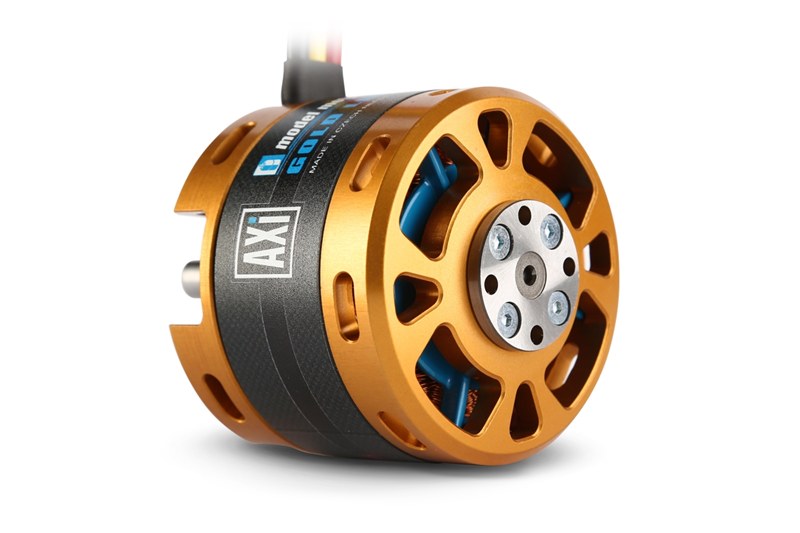

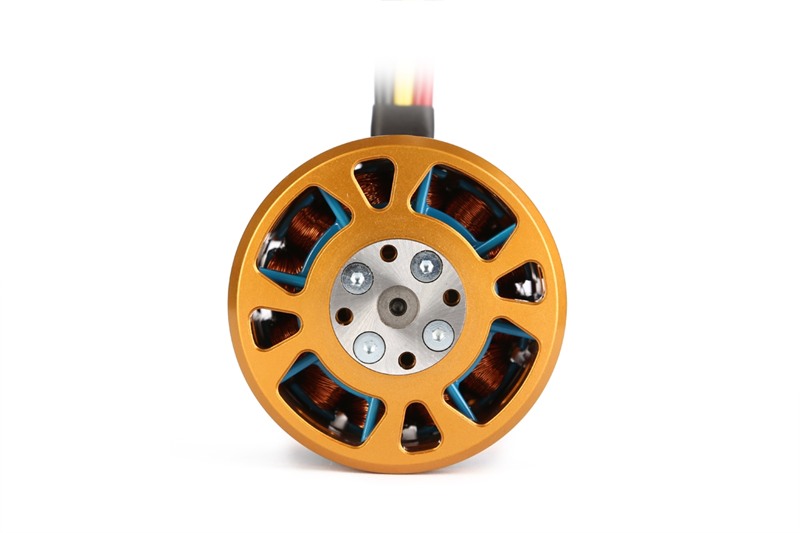

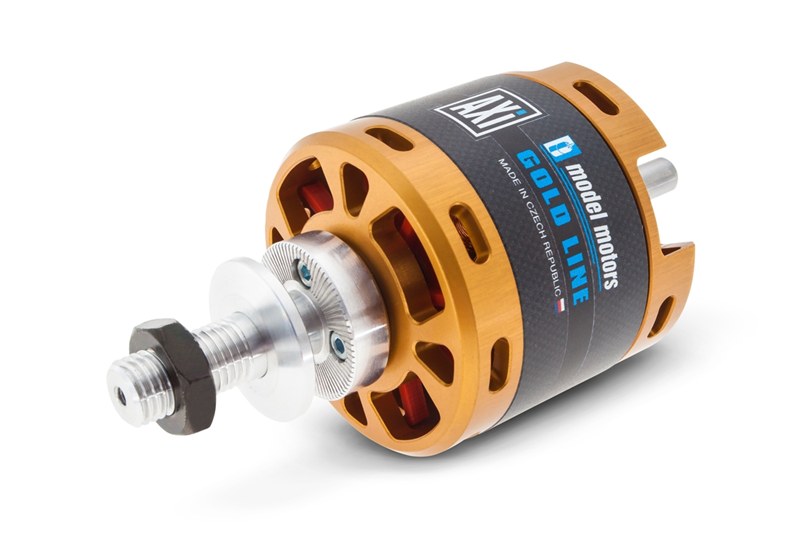

AXI 4120/14 V2 Brushless Motor 3EL10555V2
£154.43

Shipping from:
£8.50

Brand:  AXI Model Motors
Part No: 3EL10555V2
Barcode: 8595247302113
Availability : Special Order

Supply voltage LiXX cells: 3 - 5 ;
RPM/V [RPM/min/V]: 660 ;
Nr. of turns: 14 ;
Internal resistance [mOhm]: 41 ;
No load current [A]: 1.9 ;
max. effenciency [%]: 87 ;
Max. efficiency current (η<82%) [A]: 20 - 40 ;
Max. peak current (60 s) [A]: 57 ;
Max. power [W]: 1015 ;
Diameter [mm]: 50 ;
Length [mm]: 54.4 ;
Shaft diameter [mm]: 6 ;
Weight [g]: 315 ;
Nr. of poles: 14 ;
Timming [°]: 15 - 25 ;
ESC [A] : 70 - 90 ;
Sailplane up to Weight [g]: 5000 ;
Trainer up to Weight [g]: 4000 ;
Acrobat up to Weight [g]: 3500 ;
3d up to Weight [g]: 3000
