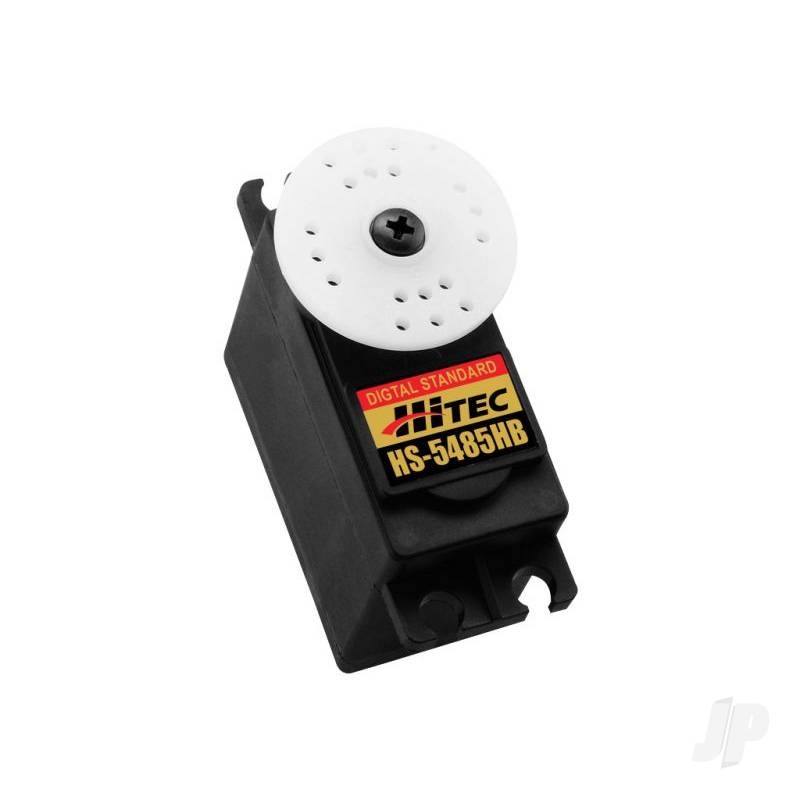

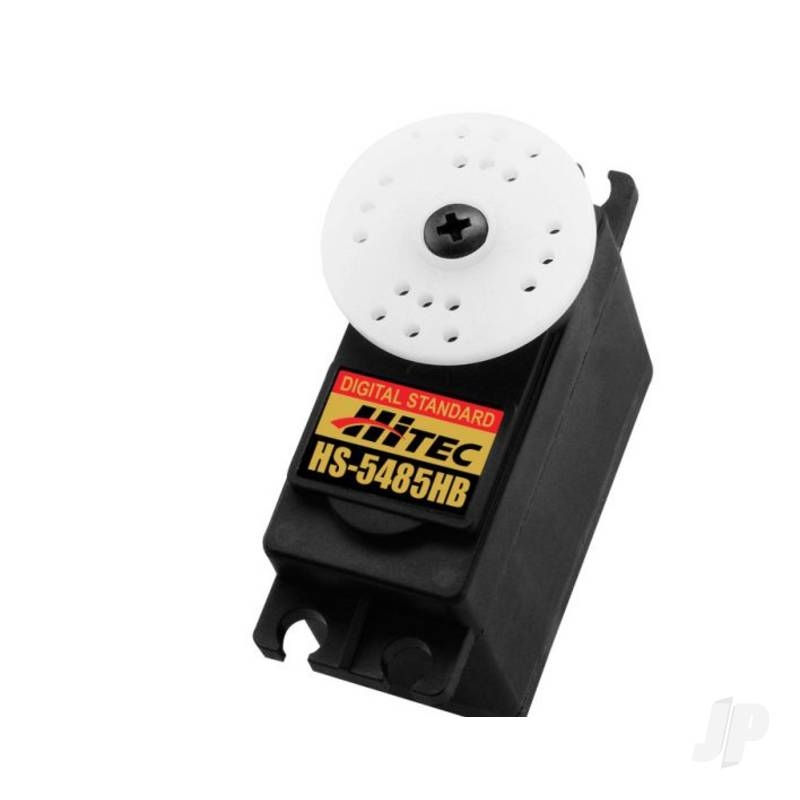

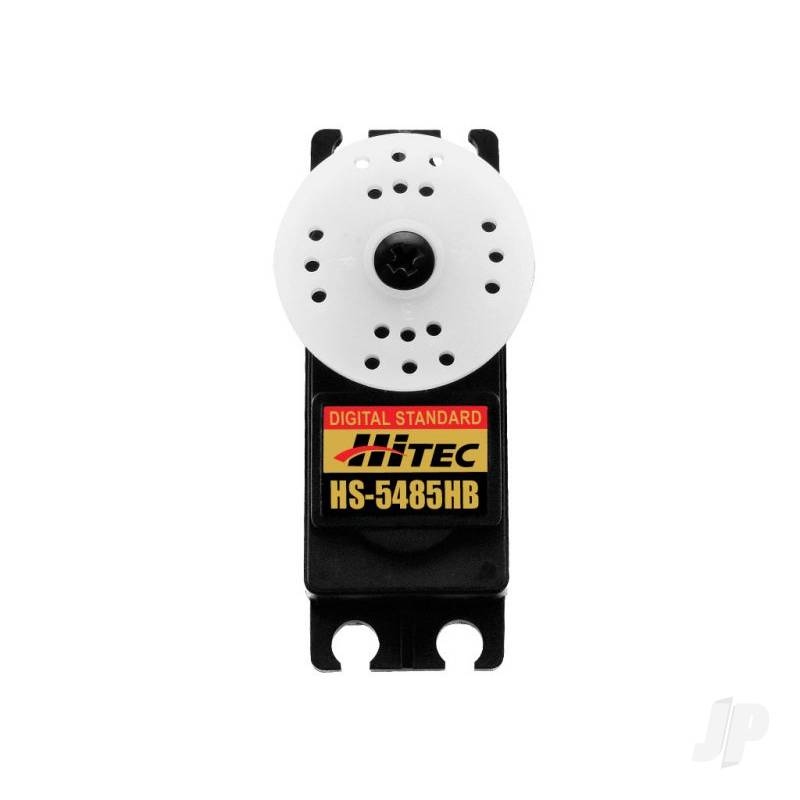

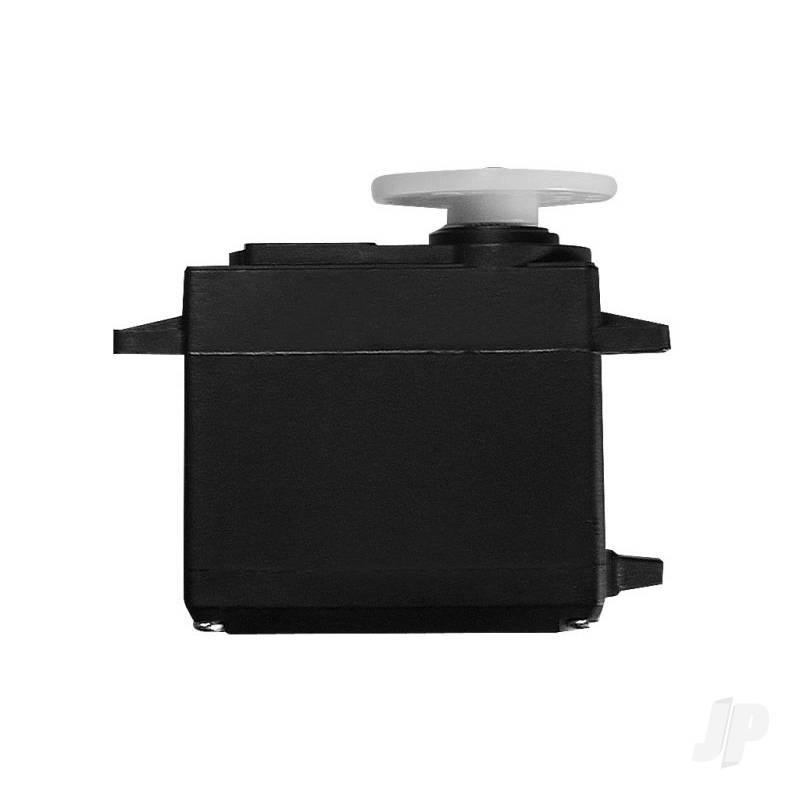

  5. Hitec HS-5485HB Standard Digital Cored Servo 45g 6.4kg/0.17s 4.8V - 6.0V 2217580
Please wait a moment


£22.54
Shipping from:
£4.99

Brand:  Hitec
Part No: 2217580
Barcode: 669962354851
Availability : 15 in stock


Reviews (1) Add to list
Hitec HS-5485HB Standard Digital Cored Servo 45g 6.4kg/0.17s 4.8V - 6.0V 2217580

Hitec HS-5485HB Standard Digital Cored Servo 45g 6.4kg/0.17s 4.8V - 6.0V 2217580

Hitec HS-5485HB Standard Digital Cored Servo 45g 6.4kg/0.17s 4.8V - 6.0V 2217580

Hitec HS-5485HB Standard Digital Cored Servo 45g 6.4kg/0.17s 4.8V - 6.0V 2217580

Hitec HS-5485HB Standard Digital Cored Servo 45g 6.4kg/0.17s 4.8V - 6.0V 2217580

Hitec HS-5485HB Standard Digital Cored Servo 45g 6.4kg/0.17s 4.8V - 6.0V 2217580




The 5485HB is the latest addition to the Hitec digital line of servos offering improved performance over the 5475HB for even less.

The HS-5455HB is Hitec’s lowest cost digital servo and is an excellent choice for sport airplanes up to .60 size . Featuring a programmable digital circuit and our Karbonite™ gear technology that offers four times the strength as our standard nylon gears and after hundreds of thousands of cycles won’t show any signs of wear.



HS-5485HB Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.20 ~ 0.17
Maximum Torque Range oz. / in. 72 ~ 89
Maximum Torque Range kg. / cm. 5.2 ~ 6.4
Current Draw at Idle 10 mA
No Load Operating Current Draw 170 mA
Stall Current Draw 1,200 mA
Dead Band Width 4 µs
Physical Specifications

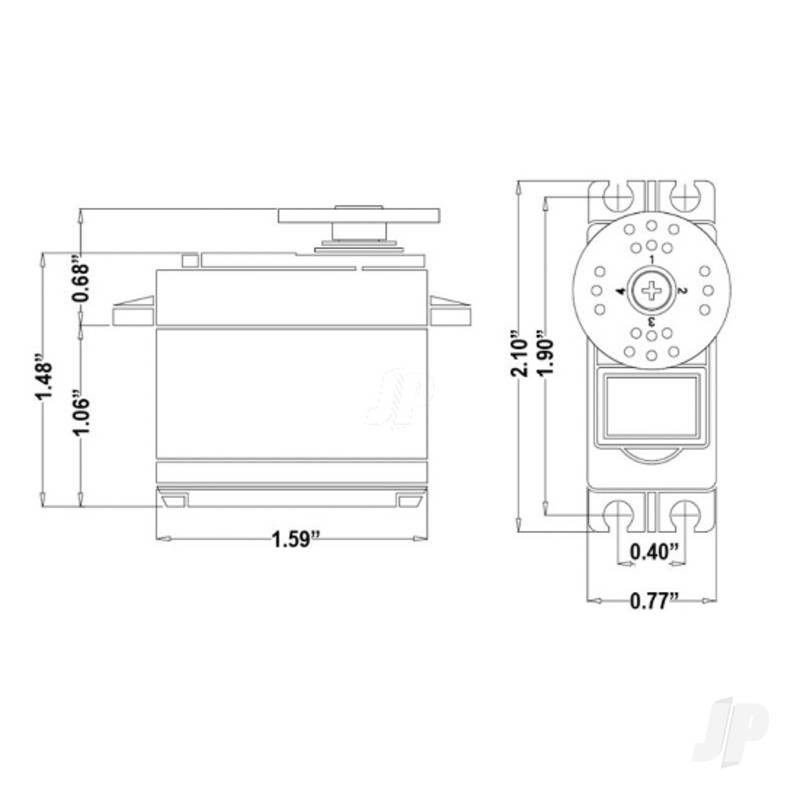

Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 x 19.8 x 38.0
Weight (Ounces) 1.59
Weight (Gram) 45.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Karbonite
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
