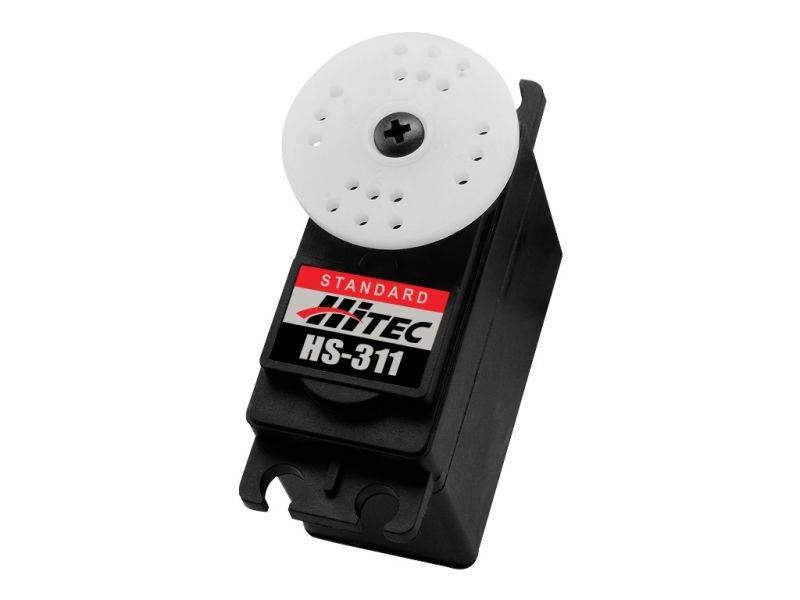

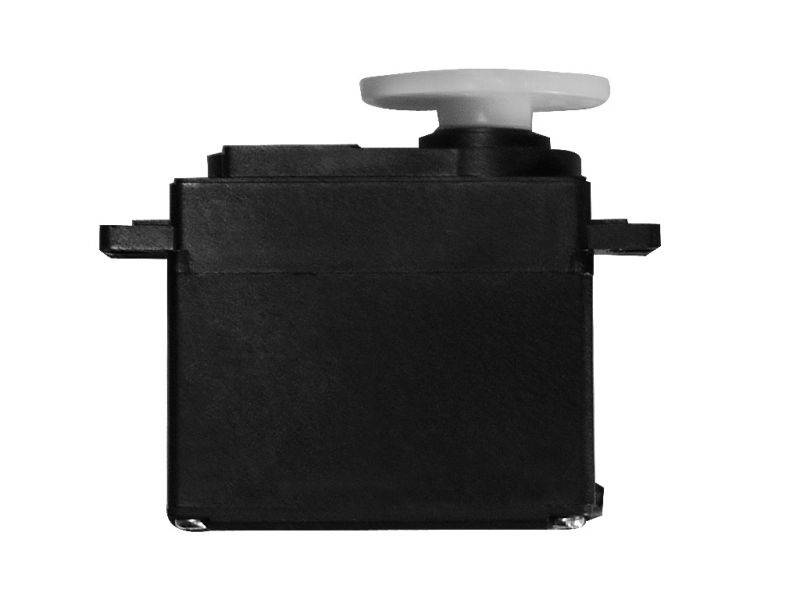

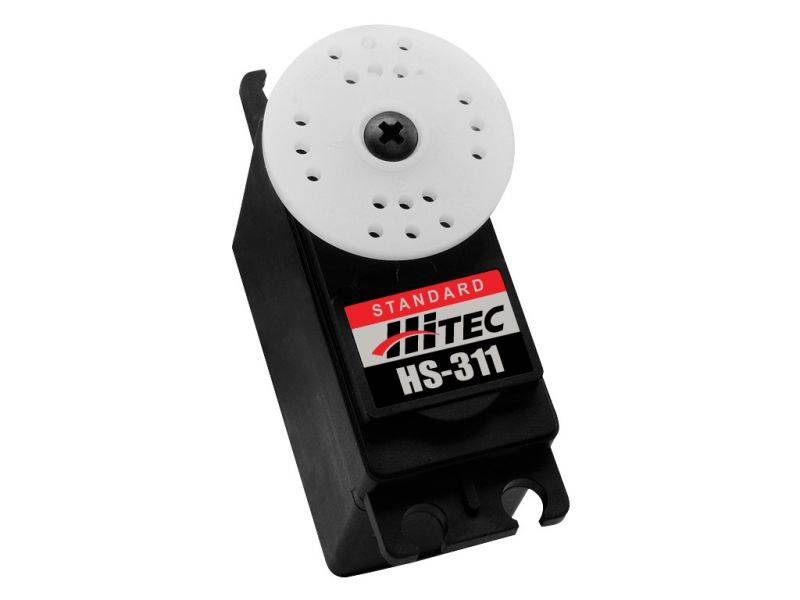

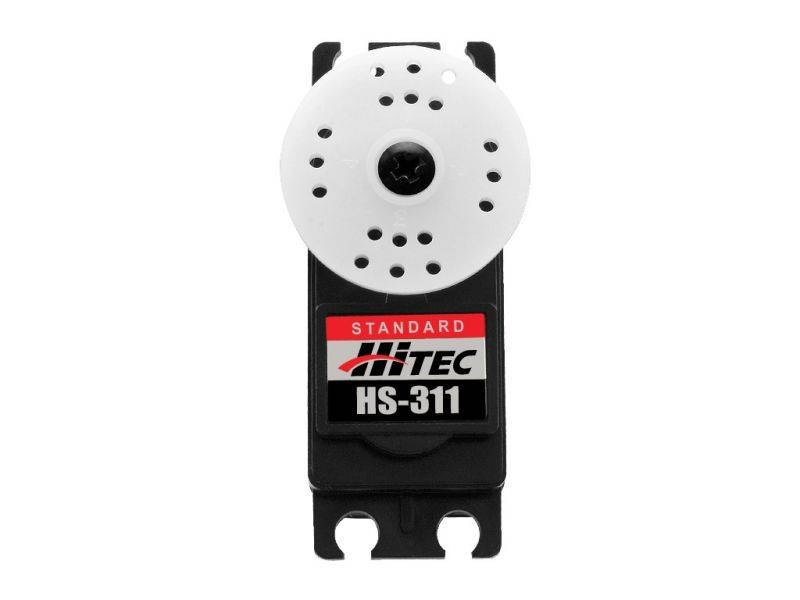

Product Description
The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C market.
Features
- Our Low Cost Standard Size Servo
- Reliable Three-Pole Ferrite Motor
- Durable Resin Gears
- Popular Selling Servo
HS-311 Servo Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.19 ~ 0.15 |
| Maximum Torque Range oz. / in. |
42 ~ 49 |
| Maximum Torque Range kg. / cm. |
3.0 ~ 3.5 |
| Current Draw at Idle |
7.7 mA |
| No Load Operating Current Draw |
180 mA |
| Stall Current Draw |
800 mA |
| Dead Band Width |
5 µs |
| Physical Specifications |
| Dimensions (Inches) |
1.57 x 0.78 x 1.43 |
| Dimensions (Metric) |
40.0 x 20.0 x 36.5 |
| Weight (Ounces) |
1.51 |
| Weight (Gram) |
43.0 |
| Circuit Type |
HT7003 Analog SMT |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Nylon |
| Bearing Type |
None |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
25 / 40 |
