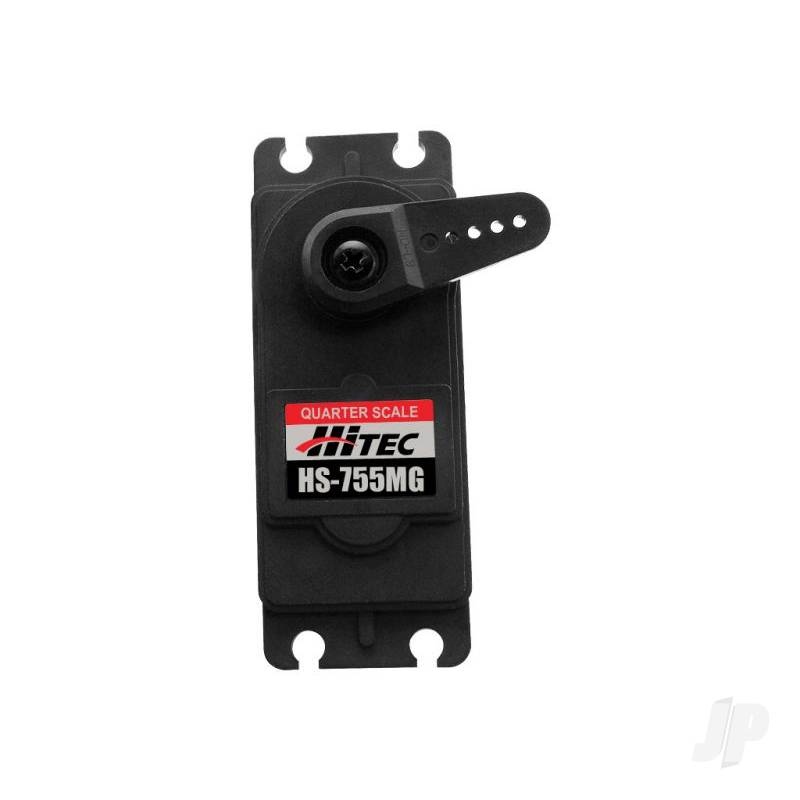

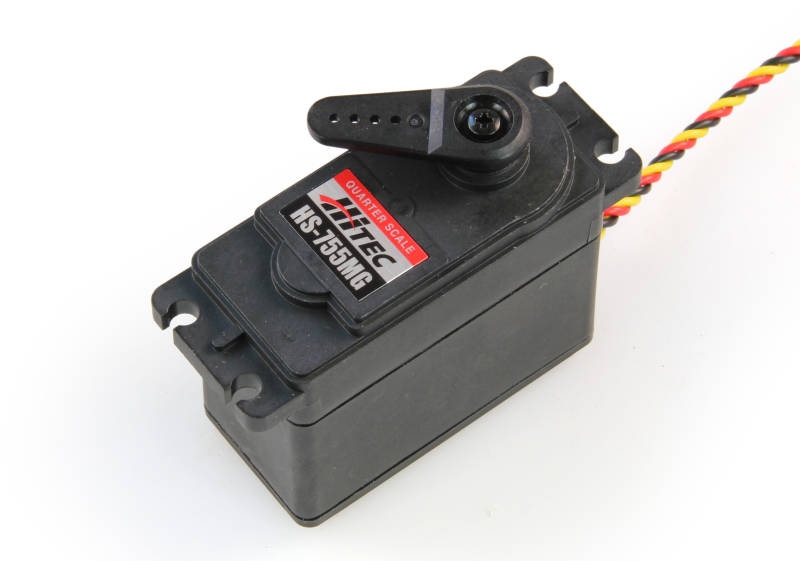

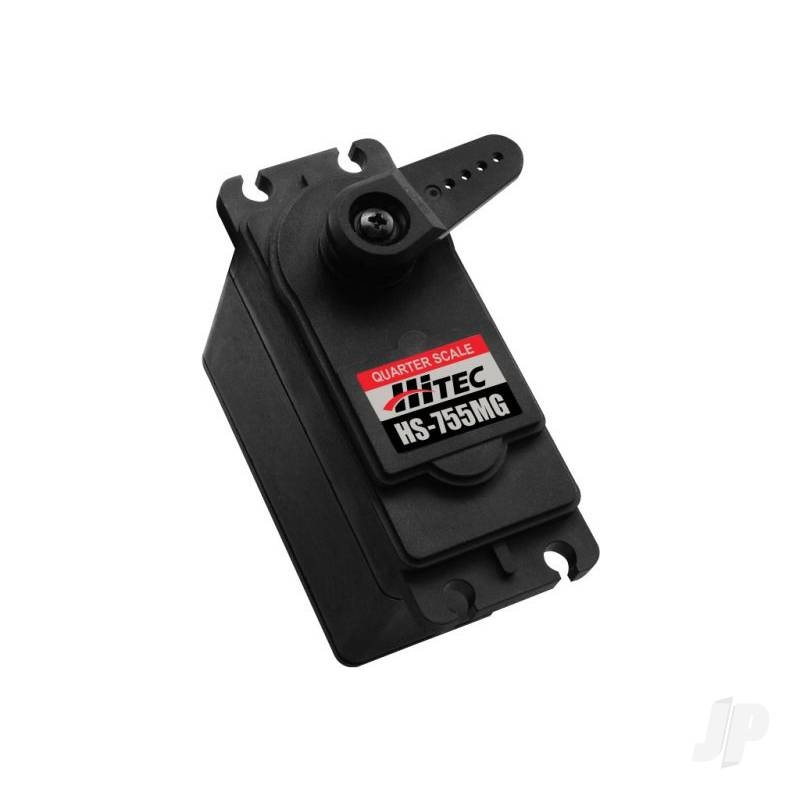

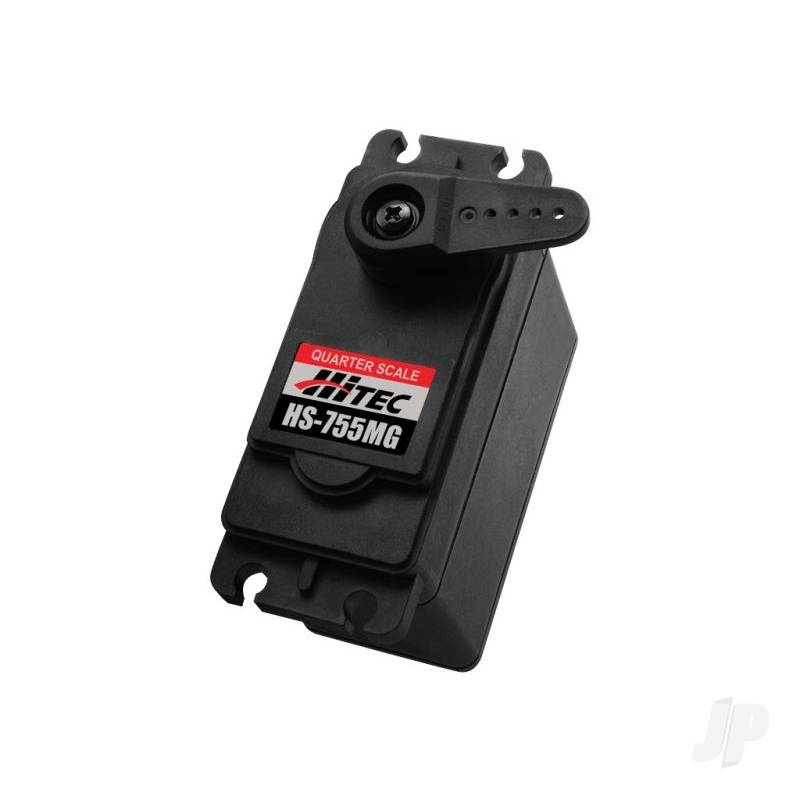

Hitec HS-755MG Giant Analogue Cored Servo 117g 14.4kg/0.23s 4.8V

Our telephone lines are off at the moment. If you wish to contact us our Whats App is 0113 2646117. We will be attending Weston Park 2026! If you wish to make a click and collect order and want to collect it there in your order comments put "collect from Weston Park"

Description
Specifications

HS755MG

Hitec’s expansive line-up of servos include the HS-755MG servo, offered with metal gears. Perfect for larger R/C applications and feature dual ball-bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque.

HS-755MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.28 ~ 0.23
Maximum Torque Range oz. / in.	167 ~ 200
Maximum Torque Range kg. / cm.	12.0 ~ 14.4
Current Draw at Idle	8 mA
No Load Operating Current Draw	250 mA
Stall Current Draw	1,800 mA
Dead Band Width	5 µs
Physical Specifications

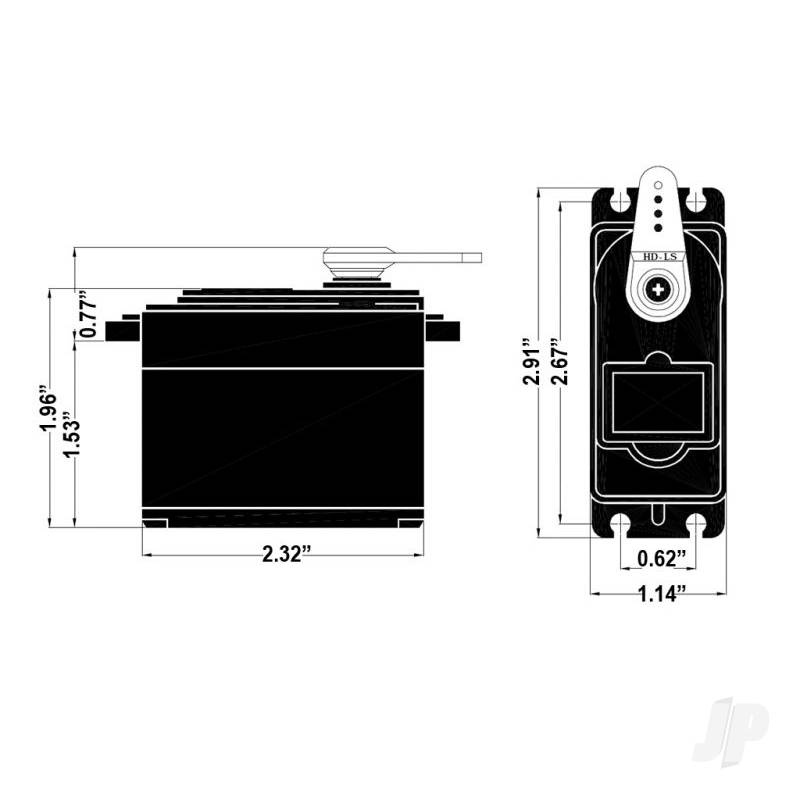

Dimensions (Inches)	2.32 x 1.14 x 1.96
Dimensions (Metric)	59.0 x 29.0 x 50.0
Weight (Ounces)	4.12
Weight (Gram)	117.0
Circuit Type	HT7003 Analog MosFet
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	Splash Proof
Connector Gauge (AWG) / Strand Count	22 / 60

Manufacturer Info

Hitec Homepage

Other products

Hitec HS-755MG Giant Analogue Cored Servo 117g 14.4kg/0.23s 4.8V - 6.0V 2214520£53.36 Shipping from: £4.99 Brand: Hitec Part No: 2214520Barcode: 669962320467Availability : Sold Out !

HS-755MG Servo Specifications

Hitec HS-755MG Giant Analogue Cored Servo 117g 14.4kg/0.23s 4.8V - 6.0V 2214520
£53.36
Shipping from:
£4.99

Brand: Hitec
Part No: 2214520
Barcode: 669962320467
Availability : Sold Out !
