Tony Ray 1:6.5 DFS Weihe 2770mm [kit-to-build] TRGS015
£289.99

Shipping from:
£9.95

Brand:  Tony Ray Aero Model
Part No: TRGS015
Barcode: TRGS015
Availability : 3 in stock

Are you looking for a new challenge in model building?

Do you put a lot of emphasis on details and perfection in assembly?

Then you've found just the right project here.

DFS Weihe 50 model aeroplane kit, 1 / 6.5 scale, 2770 mm / 109" wingspan, Lasercut wooden kit, GO613 profile, 1241 mm / 48.85" fuselage length, 1300 g RTF, RC glider model kit, glider to build yourself

This aeroplane is a wonderful glider for enjoyable hours of flying in the summer twilight (GO613 profile).

The final result is a decelerating model aeroplane with a guaranteed fun factor.

The DFS Weihe 50 has a filigree design and is suitable for towing and hang gliding.

A motor can also be installed if required.


Model specifications:

- Wingspan: 2770 mm (109.06")

- Wing size: 51.24 dm² (5.51 ft²)

- Flying weight: 1200 - 1400 grams (42.32 - 49.38 oz.)

- Fuselage length: 1241 mm (48.85")

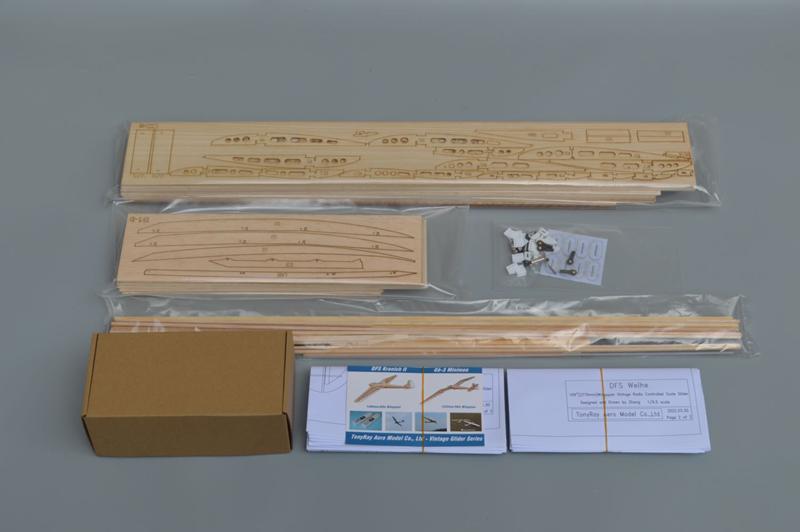

• Scope of Delivery:



  - 25 x balsa wood sheets, 6 x plywood sheets, 4 x paulownia sheets

  - 8 x 3 * 3 mm balsa wood sticks, 2 x 3 * 3 mm pine wood sticks, 4 x 4 * 4 mm pine wood sticks, 5 x 6 mm pine wood sticks

  - 1 x PVC housing, 2 x PVC tubes

  - 2 x steel cable, 2 x clamping eye

  - 8 x plastic hinge, 1 x paper hinge

  - 10 x M2 * 8 mm screws, 4 x M2 * 10 mm screws, 3 x M3 * 25 mm screws

  - 4 x M2 nuts, 3 x M3 claw nuts, 2 x M2 metal rods

  - 4 x rudder horn, 4 x M2 ball joint connectors, M5 x 2 mm mini magnet

  - Building instructions, centre of gravity drawing, construction drawings for wings

  - NOT INCLUDED IN THE DELIVERY: Decorations, assembly tools, aids such as glue etc., RC components for flying
