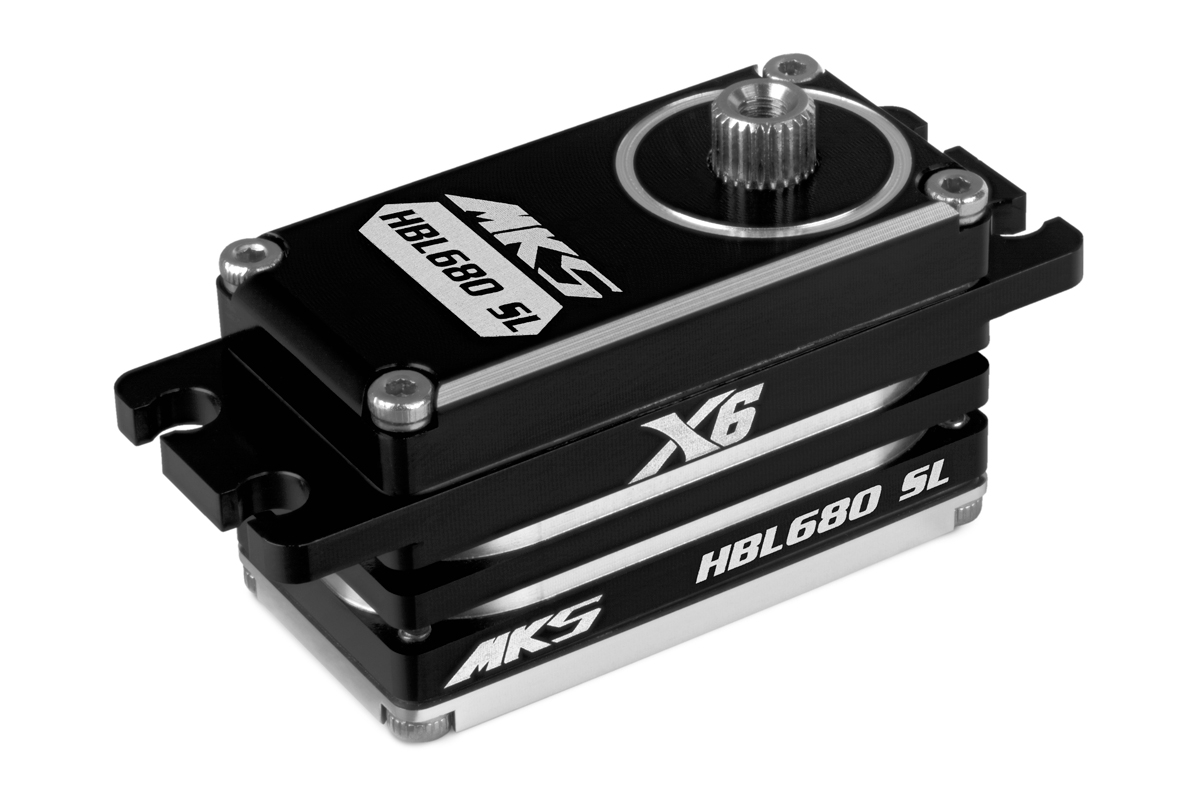

MKS HBL680SL (0.045s/60°, 9,5kg.cm) MKS10019
£158.03

Brand:  MKS Servo-Tech
Part No: MKS10019
Barcode: 4710150350974
Availability : Special Order
Supplier Stock : None

High torque/ultra high speed 54g HV digital narrowband (760µs) brushless low-profile standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for tail rotors of 550-700 class helicopters, compatible with most of 760µs gyro and flybarless systems. Torque 7.0kg.cm, speed 0.056s/60° at 6.0V, torque 8.6kg.cm, speed 0.045s/60° at 7.4V, torque 9.5kg.cm, speed 0.041s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40.5x20.5x23.1mm, weight 54g. Non-programmable.

High torque/ultra high speed narrowband (760µs) digital low-profile standard brushless servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 550-700 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads. This servo is not programmable.

Input voltage range 6.0-7.4 V (nominal), 4.8-8.4 V (operational).
