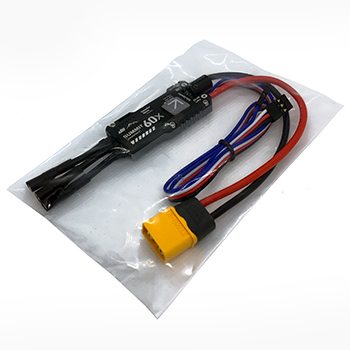

Dualsky Summit 60X U6 ESC 2S-6S Lipo (42257) DUA116

Dualsky Summit 60X-U6 60A Slim 6S Brushless ESC is designed for superior functionality and performance, primarily in multi-rotors and runs on ARM 32bit MCUs.

FEATURES

  • Telemetry support including temperature, voltage, current and rotation speed
  • Temperature protection
  • Low RPM power protection
  • Low Voltage protection
  • Current protection
  • PWM frequency
  • Minimum throttle, maximum throttle and centre throttle
  • S.BUS as input signal is supported

TECHNICAL DATA:

Cells: 2-6 LiPo
Duration current (A): 60
Weight (g): 40.6g
BEC: 6V/5A (10A kurz)
Type: Brushless
Length (mm): 49mm
Wide (mm): 23mm
Height (mm): 7.2mm
BEC or OPTO: BEC
Direction of rotation: Normal
Motor timing: Auto
Throttle stick min. 1040
Throttle stick max. 1960
Undervoltage shutdown: 3V
Brake on stop: 80%, activated
PWM frequency: 24kHz
