Hacker Digital Micro Servo DITEX EL0117M 51000117

Hacker Digital Micro Servo DITEX EL0117M 51000117

Hacker Digital Micro Servo DITEX EL0117M 51000117

DITEX EL0117M

Product description and features

The DITEX EL0117M is a 7 gram micro digital servo with metal gear. The high-quality coreless motor and the control with a precise potentiometer make the EL0117M a fast, compact and cheap servo.

Application proposal

The lightweight and compact micro digital servo DITEX EL0117M with metal gear fits for model aircraft up to 2.0Kg, mini-RC drones, 1/28 RC cars, RC boats, landing gear and robots etc.

Scope of delivery

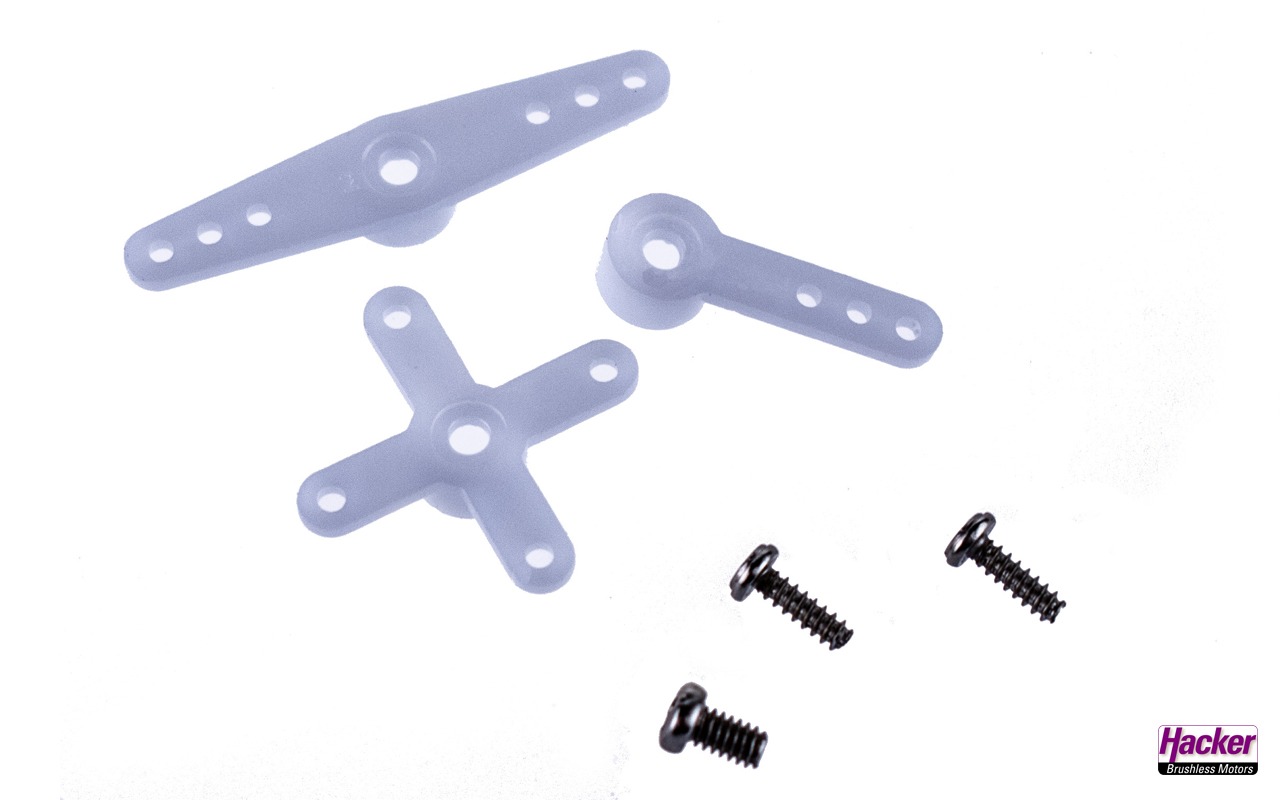

1 DITEX EL0117M, servo lever and mounting material.



General
Recommended application area Micro servo made of full aluminium for smallest Micro servo for smallest applications.
Classification Micro
Dimensions and weight
Length 20mm (0.79in)
Width 11.3mm (0.44in)
Height 21mm (0.83in)
Weight incl. connection cable 6
Specifications
High voltage capable no
Voltage 1 (V1) 4,8
Voltage 2 (V2) 6
Max. input voltage 6V
Regulating time V1/60° 0,085
Regulating time V2/60° 0,075
Pulling load V2 1,1
Frequency 55Hz to 333Hz
Outer diameter output in mm 3,95mm
Housing type Aluminium
Motor type Coreless
Transmission type Titanium/Copper
Number of output cogs 20
Angle measurement Potentiometer
Programmable no
Soft start no
Telemetry no


Manufacturer Info
Hacker DE
Hacker DE Homepage
